SKKH56-12D Semikron - Thyristor / Diode Module

Also written as: SKKH56/12D

Category: Thyristor & SCR Modules

Specifications: 1200V, 55A

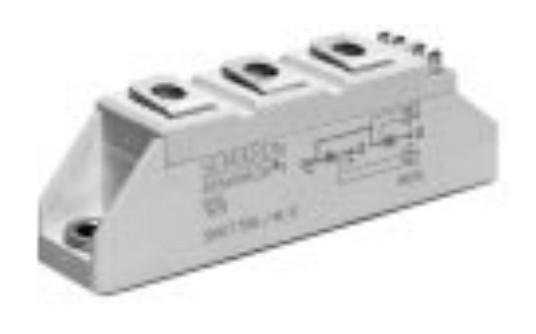

SKKH56-12D, SEMIKRON, Power Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SKKH56-12D Description

Rated at 1200 V and 55 A, the Semikron SKKH56-12D is a thyristor module. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control.

Looking for a replacement SKKH56-12D? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

Semikron SKKH56-12D is used for DC motor control (e.g. for machine tools), AC motor soft starters, temperature control (e.g. for ovens, chemical processes) and professional light dimming (studios, theaters).

Key Specifications

SKKH56-12D: key data from the Semikron datasheet.

ParameterValue
Product typeThyristor / diode module
Repetitive peak reverse voltage (VRRM / VDRM)1,200 V
Non-repetitive peak reverse voltage (VRSM)1,300 V
On-state / forward voltage, max. (Tvj = 25 °C)1.65 V
PackageSEMIPACK 1
Weightapprox. 120 g
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SKKH56-12D (reply within 24 hours)
