SK35DGD12T4Tp Semikron - IGBT Module

Category: IGBT Modules

Specifications: 1200V, 35A

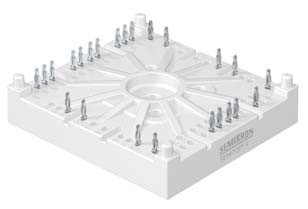

SK35DGD12T4Tp Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK35DGD12T4Tp Description

SK35DGD12T4Tp is a 1200 V / 35 A CI (converter + inverter) IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Typical applications: motor drives.

USComponent supplies SK35DGD12T4Tp and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • One screw mounting module
  • Solder free mounting with Press-Fit terminals
  • Fully compatible with other SEMITOP Press-Fit types
  • Improved thermal performances by aluminium oxide substrate
  • Trench4 IGBT technology
  • CAL4F technology FWD
  • Integrated NTC temperature sensor

Target Applications

Semikron SK35DGD12T4Tp is used for Motor drives.

Key Specifications

SK35DGD12T4Tp is a 1200 V / 35 A CI (converter + inverter) IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Product lineSEMITOP
ConfigurationCI (converter + inverter)
Collector-emitter voltage (VCES)1200 V
Nominal collector current (IC nom)35 A
Chip technologyIGBT 4 (Trench)
PackageSEMITOP 4 Press-Fit
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK35DGD12T4Tp (reply within 24 hours)
