SK150MLI07S5TD1E2 Semikron - IGBT Module

Category: IGBT Modules

Specifications: 650V, 150A

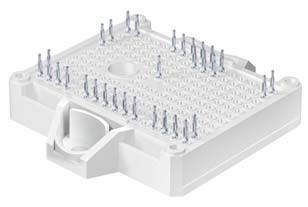

SK150MLI07S5TD1E2 Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SK150MLI07S5TD1E2 Description

SK150MLI07S5TD1E2 is a 650 V / 150 A 3-level IGBT module from Semikron Danfoss (SEMITOP E2 package). Typical applications: solar.

USComponent supplies SK150MLI07S5TD1E2 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Optimized design for superior thermal performance
  • Low inductive design
  • Press-Fit contact technology
  • Split IGBT gates for optimized driving
  • Rapid switching diode technology
  • Integrated NTC temperature sensor
  • UL recognized file no. E 63 532

Target Applications

Semikron SK150MLI07S5TD1E2 is used for Solar.

Key Specifications

SK150MLI07S5TD1E2 is a 650 V / 150 A 3-level IGBT module from Semikron Danfoss (SEMITOP E2 package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
Configuration3-level
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)150 A
Chip technologyTrench 5 (S5)
PackageSEMITOP E2
Supply status (Semikron)Active
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SK150MLI07S5TD1E2 (reply within 24 hours)
