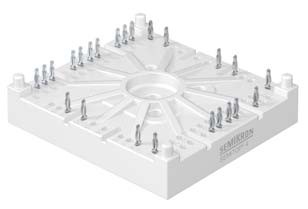

SK150DBB07F3TD1p Semikron - IGBT Module

SK150DBB07F3TD1p Description

SK150DBB07F3TD1p is a 650 V / 150 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Typical applications: three-level DC-DC converter.

USComponent supplies SK150DBB07F3TD1p and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK150DBB07F3TD1p is used for Three-level DC-DC converter.

Key Specifications

SK150DBB07F3TD1p is a 650 V / 150 A H-bridge IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Configuration	H-bridge
Collector-emitter voltage (VCES)	650 V
Nominal collector current (IC nom)	150 A
Chip technology	IGBT 3 (Trench)
Package	SEMITOP 4 Press-Fit
Supply status (Semikron)	Discontinued
Datasheet	Available on this page (PDF)

Status: Semikron Danfoss lists SK150DBB07F3TD1p as discontinued. USComponent can still source SK150DBB07F3TD1p and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for SK150DBB07F3TD1p (reply within 24 hours)
