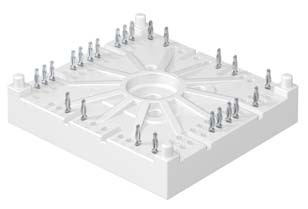

SK100DGM07S5Tp Semikron - IGBT Module

SK100DGM07S5Tp Description

SK100DGM07S5Tp is a 650 V / 100 A IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Typical applications: switched mode power supplies.

USComponent supplies SK100DGM07S5Tp and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Semikron SK100DGM07S5Tp is used for Switched mode power supplies.

Key Specifications

SK100DGM07S5Tp is a 650 V / 100 A IGBT module from Semikron Danfoss (SEMITOP 4 Press-Fit package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMITOP
Collector-emitter voltage (VCES)	650 V
Nominal collector current (IC nom)	100 A
Chip technology	Trench 5 (S5)
Package	SEMITOP 4 Press-Fit
Supply status (Semikron)	Active (new)
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SK100DGM07S5Tp (reply within 24 hours)
