SEMiX305GD07E4 Semikron - IGBT Module

Category: IGBT Modules

Specifications: 650V, 300A

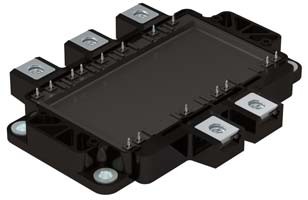

SEMiX305GD07E4 Semikron IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

SEMiX305GD07E4 Description

SEMiX305GD07E4 is a 650 V / 300 A six-pack IGBT module from Semikron Danfoss (SEMiX 5p package). Typical applications: three phase inverters for AC motor speed control.

USComponent supplies SEMiX305GD07E4 and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX305GD07E4-M04 / -M06 (pre-applied TIM: HALA P8 / HALA HT).

Summary of Features

  • Solderless assembly solution with PressFIT signal pins and screw power terminals
  • IGBT 4 Trench Gate Technology
  • VCE(sat) with positive temperature coefficient
  • Low inductance case
  • Reliable mechanical design with injection moulded terminals and robust internal connections
  • UL recognized file no. E63532
  • NTC temperature sensor inside

Target Applications

Semikron SEMiX305GD07E4 is used for Three phase inverters for AC motor speed control.

Key Specifications

SEMiX305GD07E4 is a 650 V / 300 A six-pack IGBT module from Semikron Danfoss (SEMiX 5p package). Source: Semikron Danfoss datasheet and product data.

ParameterValue
ManufacturerSemikron Danfoss
Product typeIGBT module
ConfigurationSix-pack
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)300 A
Chip technologyIGBT 4 (Trench)
PackageSEMiX 5p
Supply status (Semikron)Active (new)
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for SEMiX305GD07E4 (reply within 24 hours)
