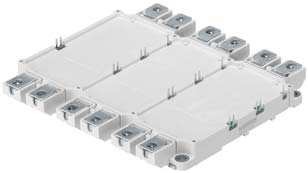

SEMiX303GD12E4c Semikron - IGBT Module

SEMiX303GD12E4c Description

SEMiX303GD12E4c is a 1200 V / 300 A six-pack IGBT module from Semikron Danfoss (SEMiX 33c package). Typical applications: AC inverter drives, Electronic welding.

USComponent supplies SEMiX303GD12E4c and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX303GD12E4c-M04 (pre-applied TIM: HALA P8).

Summary of Features

Target Applications

Semikron SEMiX303GD12E4c is used for AC inverter drives, Electronic welding.

Key Specifications

SEMiX303GD12E4c is a 1200 V / 300 A six-pack IGBT module from Semikron Danfoss (SEMiX 33c package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMiX
Configuration	Six-pack
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	300 A
Chip technology	IGBT 4 (Trench)
Package	SEMiX 33c
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SEMiX303GD12E4c (reply within 24 hours)
