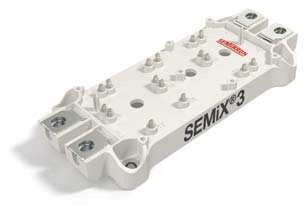

SEMiX303GB12Vs Semikron - IGBT Module

SEMiX303GB12Vs Description

SEMiX303GB12Vs is a 1200 V / 300 A half-bridge IGBT module from Semikron Danfoss (SEMiX 3s package). Typical applications: AC inverter drives, Electronic welding.

USComponent supplies SEMiX303GB12Vs and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX303GB12Vs-M04 / -M06 / -M07 (pre-applied TIM: HALA P8 / HALA HT / HP-PCM).

Summary of Features

Target Applications

Semikron SEMiX303GB12Vs is used for AC inverter drives, Electronic welding.

Key Specifications

SEMiX303GB12Vs is a 1200 V / 300 A half-bridge IGBT module from Semikron Danfoss (SEMiX 3s package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMiX
Configuration	Half-bridge
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	300 A
Chip technology	V-IGBT
Package	SEMiX 3s
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)
