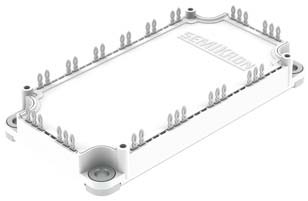

SEMiX106GD12T4p Semikron - IGBT Module

SEMiX106GD12T4p Description

SEMiX106GD12T4p is a 1200 V / 100 A six-pack IGBT module from Semikron Danfoss (SEMiX 6p package). Typical applications: AC inverter drives, Electronic welding.

USComponent supplies SEMiX106GD12T4p and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX106GD12T4p-M06 (pre-applied TIM: HALA HT).

Summary of Features

Target Applications

Semikron SEMiX106GD12T4p is used for AC inverter drives, Electronic welding.

Key Specifications

SEMiX106GD12T4p is a 1200 V / 100 A six-pack IGBT module from Semikron Danfoss (SEMiX 6p package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Configuration	Six-pack
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	100 A
Chip technology	IGBT 4 Fast (Trench)
Package	SEMiX 6p
Supply status (Semikron)	Active (new)
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SEMiX106GD12T4p (reply within 24 hours)
