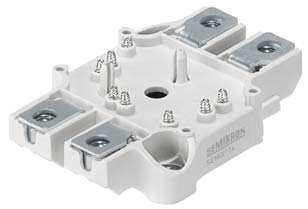

SEMiX151GAL12E4s Semikron - IGBT Module

SEMiX151GAL12E4s Description

SEMiX151GAL12E4s is a 1200 V / 150 A chopper IGBT module from Semikron Danfoss (SEMiX 1s package). Typical applications: AC inverter drives, Electronic welding.

USComponent supplies SEMiX151GAL12E4s and other Semikron power modules. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX151GAL12E4s-M06 (pre-applied TIM: HALA HT).

Summary of Features

Target Applications

Semikron SEMiX151GAL12E4s is used for AC inverter drives, Electronic welding.

Key Specifications

SEMiX151GAL12E4s is a 1200 V / 150 A chopper IGBT module from Semikron Danfoss (SEMiX 1s package). Source: Semikron Danfoss datasheet and product data.

Parameter	Value
Manufacturer	Semikron Danfoss
Product type	IGBT module
Product line	SEMiX
Configuration	Chopper
Collector-emitter voltage (VCES)	1200 V
Nominal collector current (IC nom)	150 A
Chip technology	IGBT 4 (Trench)
Package	SEMiX 1s
Supply status (Semikron)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for SEMiX151GAL12E4s (reply within 24 hours)
