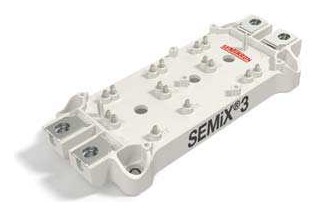

SEMIX603GAL066HDS Semikron - IGBT Module

SEMIX603GAL066HDS Description

SEMIX603GAL066HDS is a trench IGBT module, SEMiX 3s, IGBT + freewheeling diode (GAL configuration) from Semikron, rated 600V, 600A. Typical applications: Matrix converter, resonant inverter and current source inverter.

USComponent supplies SEMIX603GAL066HDS and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Also available as SEMiX603GAL066HDs-M04 / -M06 (pre-applied TIM: HALA P8 / HALA HT).

Summary of Features

Target Applications

Semikron SEMIX603GAL066HDS is used for Matrix converter, resonant inverter and current source inverter.

Key Specifications

SEMIX603GAL066HDS is a trench IGBT module, SEMiX 3s, IGBT + freewheeling diode (GAL configuration) from Semikron, rated 600V, 600A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Semikron
Collector-emitter voltage VCES	600 V
IC (Tc = 25 °C / 80 °C)	720 A / 541 A
ICnom	600 A
ICRM	1200 A
VCE(sat) typ. / max. (600 A, 25 °C)	1.45 V / 1.85 V
Freewheeling diode IF (Tc = 80 °C)	562 A
Max. junction temperature Tj	175 °C
Isolation voltage Visol	4000 V (1 min)
Package	SEMiX 3s
Datasheet	Available on this page (PDF)
