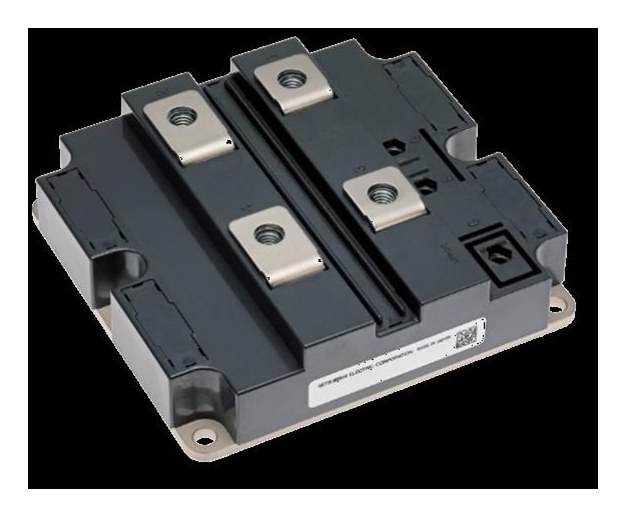

RM600DC-66X Mitsubishi - Diode Module

RM600DC-66X Description

RM600DC-66X is a 3300 V / 600 A dual (half-bridge) high voltage diode module from Mitsubishi Electric (140 x 130 IHM package). Typical applications: traction drives, High Reliability Converters / Inverters, DC choppers.

USComponent supplies RM600DC-66X and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi RM600DC-66X is used for Traction drives, High Reliability Converters / Inverters, DC choppers.

Key Specifications

RM600DC-66X is a 3300 V / 600 A dual (half-bridge) high voltage diode module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	High voltage diode module
Series	3-level building block
Configuration	Dual (half-bridge)
Repetitive peak reverse voltage (VRRM)	3300 V
Forward current (IF)	600 A
Isolation voltage (Viso)	6,000 V RMS
Package	140 x 130 IHM
Package size	140 x 130 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)
