RM600DY-34S Mitsubishi - Diode Module

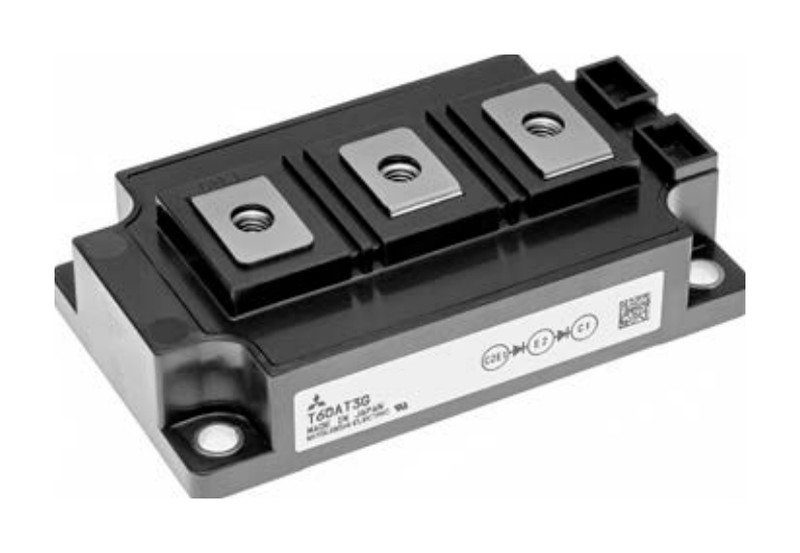

RM600DY-34S Description

RM600DY-34S is a 1,700 V / 600 A dual diode module from Mitsubishi Electric, S series (6th generation). Datasheet ratings: forward current 600 A DC, surge current 3,000 A, forward voltage 2.25 V typ., 4,000 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power.

USComponent supplies RM600DY-34S and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi RM600DY-34S is used for AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power and Wind power.

Key Specifications

RM600DY-34S is a 1,700 V / 600 A dual diode module from Mitsubishi Electric, S series (6th generation). Source: Mitsubishi Electric datasheet (Jan 2019).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	Diode module
Series	S series (6th generation)
Configuration	Dual diode
Repetitive peak reverse voltage (VRRM)	1,700 V
Forward current (IF, DC)	600 A
Surge forward current (IFSM, 60 Hz half wave)	3,000 A
Forward voltage VF (terminal), IF = 600 A, Tvj = 25 °C	2.25 V typ. / 2.75 V max.
Isolation voltage (Visol, AC 1 min)	4,000 V RMS
Maximum junction temperature (Tjmax)	175 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mounting torque (main terminals)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mass (typ.)	260 g
Supply status (Mitsubishi)	In production
Applications (datasheet)	AC Motor Control, Motion/Servo Control, Power supply, Photovoltaic power, Wind power, etc.
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM600DY-34S (reply within 24 hours)
