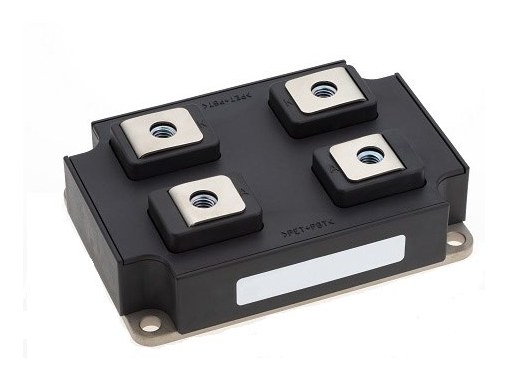

RM1800HE-34X Mitsubishi - Diode Module

RM1800HE-34X Description

RM1800HE-34X is a 1700 V / 1800 A single high voltage diode module from Mitsubishi Electric (Non-Standard package). Typical applications: traction drives, High Reliability Converters / Inverters, DC choppers.

USComponent supplies RM1800HE-34X and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi RM1800HE-34X is used for Traction drives, High Reliability Converters / Inverters, DC choppers.

Key Specifications

RM1800HE-34X is a 1700 V / 1800 A single high voltage diode module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	High voltage diode module
Series	3-level building block
Configuration	Single
Repetitive peak reverse voltage (VRRM)	1700 V
Forward current (IF)	1800 A
Package	Non-Standard
Package size	90 x 130 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for RM1800HE-34X (reply within 24 hours)
