QM50HG-HMitsubishi - Power Transistor Module

QM50HG-H Description

The Mitsubishi Electric QM50HG-H is a Darlington transistor module rated at 600 V and 50 A. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM50HG-H.

Summary of Features

Target Applications

Mitsubishi QM50HG-H is used for Inverters, Servo Drives, DC Motor Controllers, CVCF, NC Equipment and Welders.

Key Specifications

QM50HG-H is a 50 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

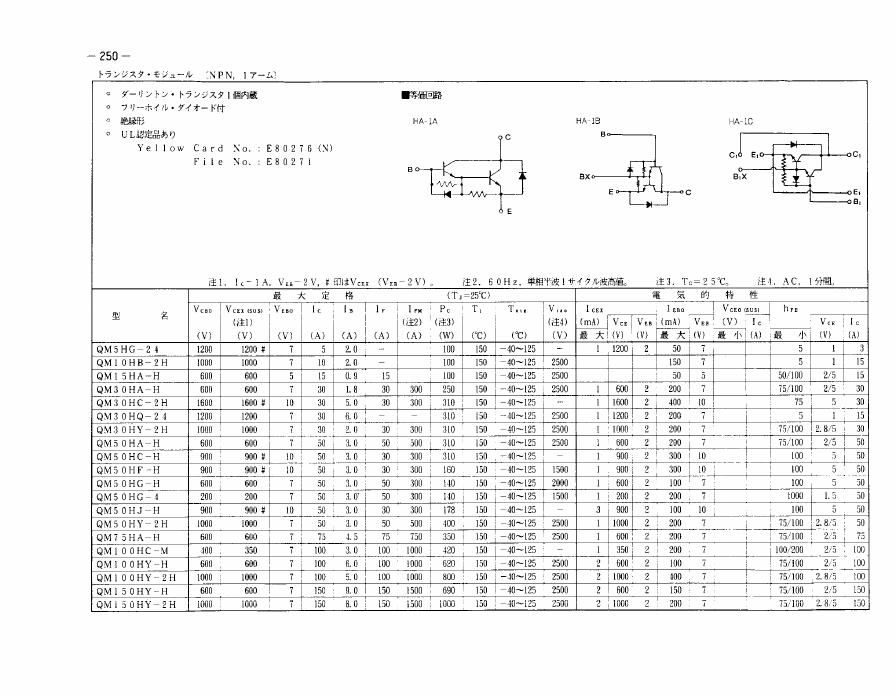

Download QM50HG-H Datasheet

QM50HG-H PDF Datasheet
