QM50HY-2HMitsubishi - Power Transistor Module

QM50HY-2H Description

Mitsubishi Electric QM50HY-2H is a Darlington transistor module rated at 1000 V and 50 A. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM50HY-2H.

Summary of Features

Target Applications

Mitsubishi QM50HY-2H is used for AC motor controllers, UPS, DC motor controllers, NC equipment and Welders.

Key Specifications

QM50HY-2H is a 50 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	50 A
Datasheet	Available on this page (PDF)

Download QM50HY-2H Datasheet

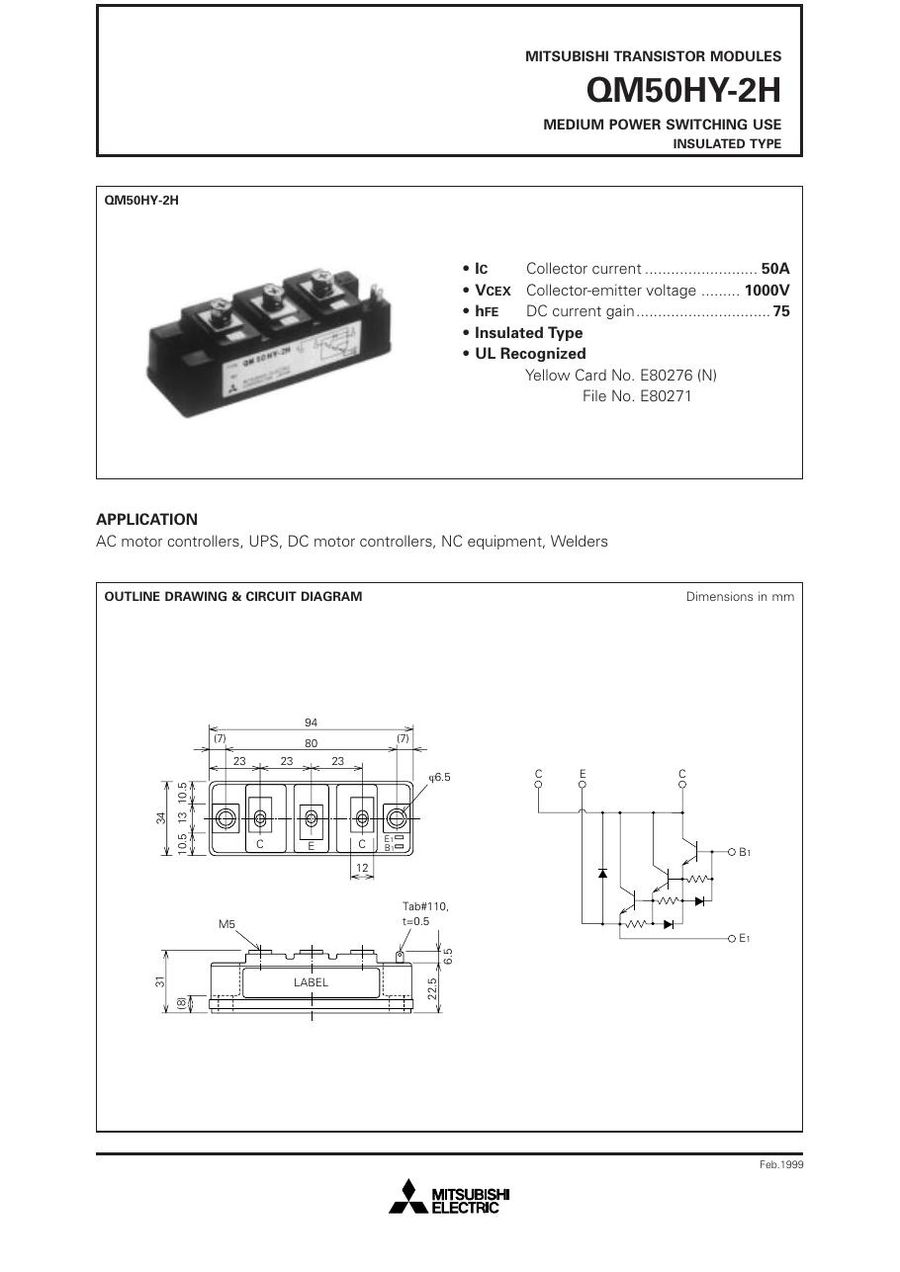

QM50HY-2H PDF Datasheet
