QM50DY-HMitsubishi - Power Transistor Module

QM50DY-H Description

Mitsubishi Electric QM50DY-H is a Darlington transistor module rated at 600 V and 50 A. Medium Power Switching Use Insulated Type Transistor Module. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM50DY-H.

Target Applications

Mitsubishi QM50DY-H is used for AC motor controllers, UPS, DC motor controllers, NC equipment and Welders.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Power Transistor Modules
Rated voltage	600 V
Rated current	50 A

QM50DY-H Video

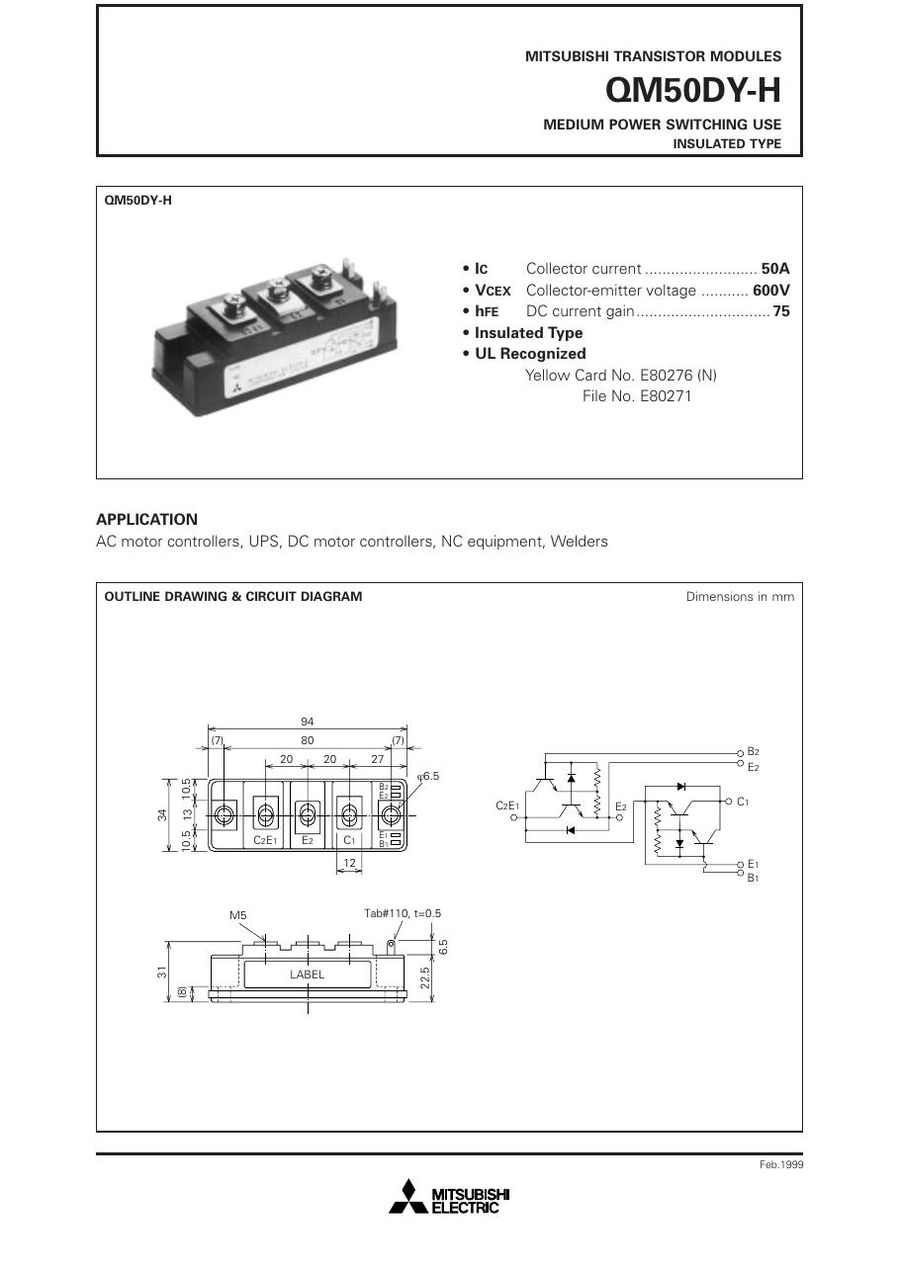

Download QM50DY-H Datasheet

QM50DY-H PDF Datasheet
