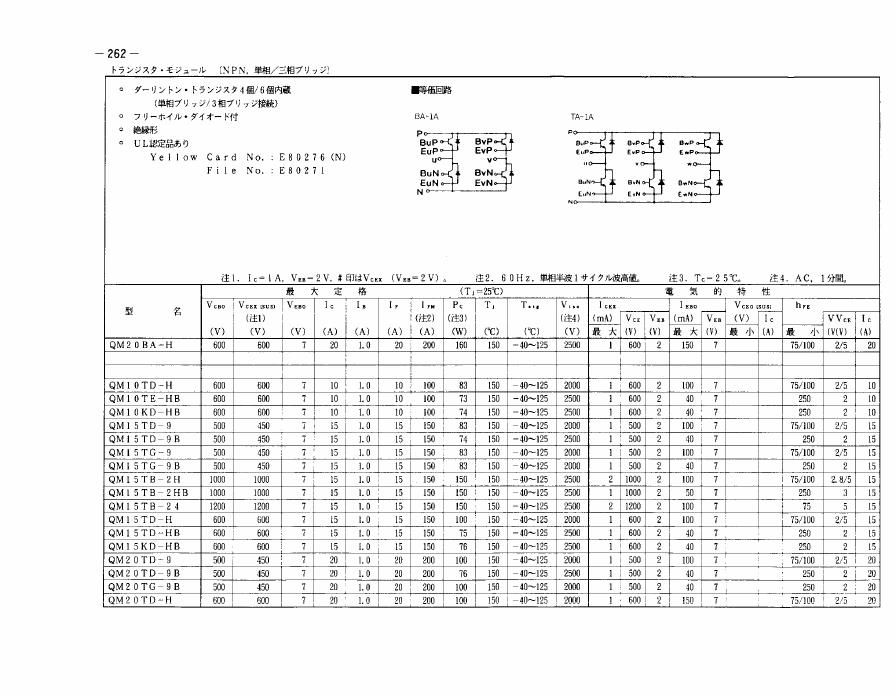

QM20TG-9Mitsubishi - Power Transistor Module

QM20TG-9 Description

The Mitsubishi Electric QM20TG-9 is a Darlington transistor module rated at 500 V and 20 A, available from USComponent. MEDIUM POWER SWITCHING USE INSULATED TYPE APPLICATION Air conditioner Small to medium size inverter. Components of this type are commonly used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM20TG-9.

Summary of Features

Target Applications

Mitsubishi QM20TG-9 is used for Air conditioner, Small to medium size inverter.

Key Specifications

Manufacturer	Mitsubishi Electric
Category	Power Transistor Module
Rated voltage	500 V
Rated current	20 A

Download QM20TG-9 Datasheet

Datasheet not available
