QM15TG-9Mitsubishi - Power Transistor Module

QM15TG-9 Description

The Mitsubishi Electric QM15TG-9 is a Darlington transistor module rated at 600 V and 15 A, available from USComponent. MEDIUM POWER SWITCHING USE INSULATED TYPE - transistor module for medium power switching use insulated type in 15-pin -- package. Operational temperature range from -40 to 150. This type of device is widely used in motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM15TG-9.

Summary of Features

Target Applications

Mitsubishi QM15TG-9 is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

QM15TG-9 is a 15 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	15 A
Datasheet	Available on this page (PDF)

Download QM15TG-9 Datasheet

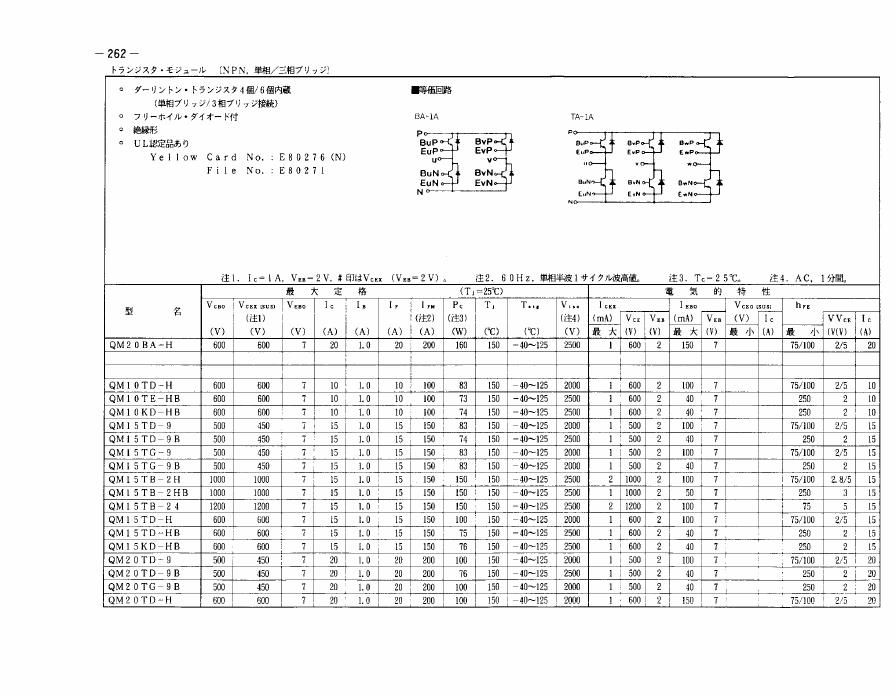

QM15TG-9 PDF Datasheet
