QM15TB-2HMitsubishi - Power Transistor Module

QM15TB-2H Description

The Mitsubishi Electric QM15TB-2H is a Darlington transistor module, available from USComponent. Typical applications for this type of device include motor drives, UPS systems and power supplies; transistor modules of this type are largely superseded by IGBTs in new designs but remain essential for maintaining installed equipment.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the QM15TB-2H.

Summary of Features

Target Applications

Mitsubishi QM15TB-2H is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

QM15TB-2H is a 15 A power transistor (bipolar Darlington) module. Source: manufacturer datasheet.

Parameter	Value
Product type	Power transistor (bipolar Darlington) module
Collector current (IC)	15 A
Datasheet	Available on this page (PDF)

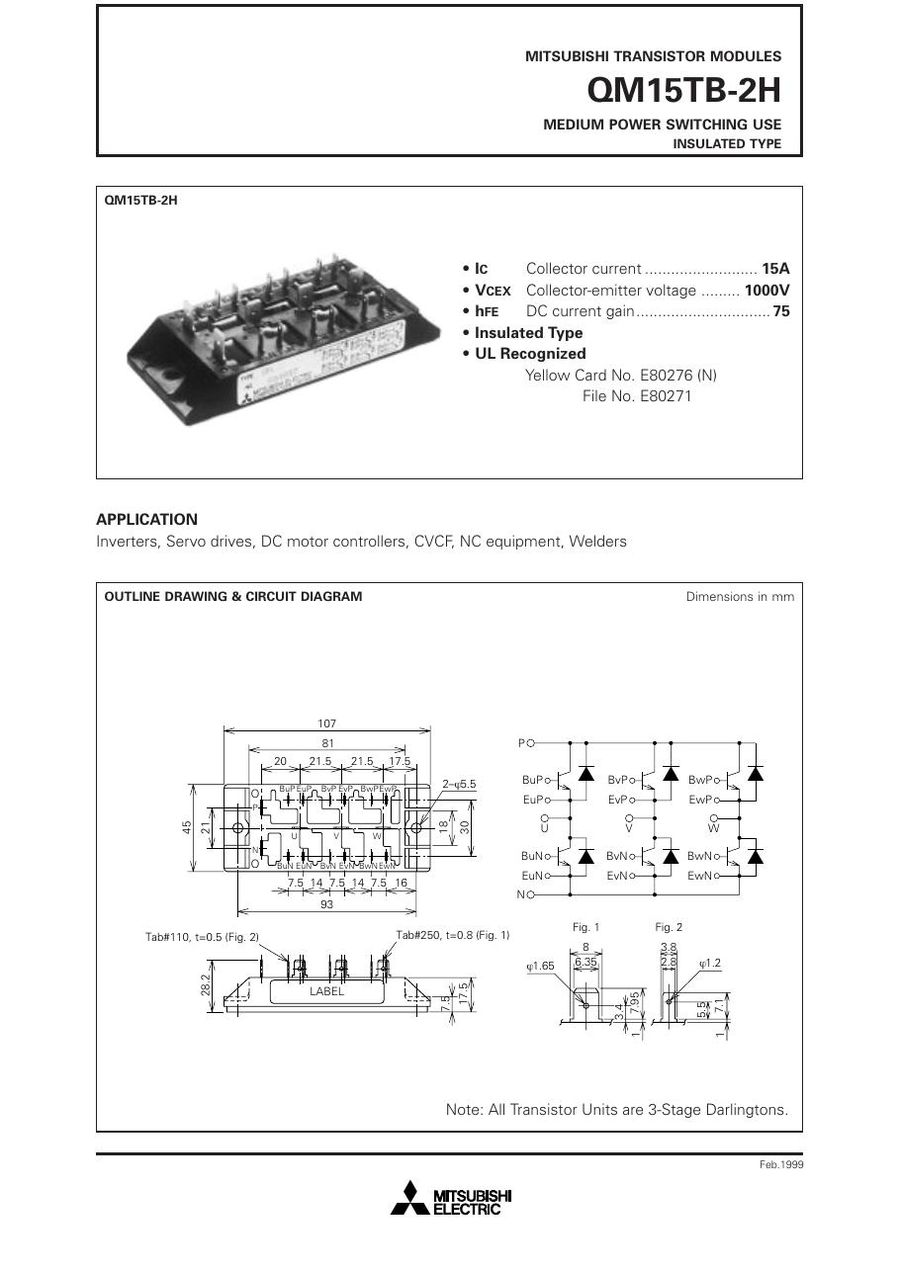

Download QM15TB-2H Datasheet

QM15TB-2H PDF Datasheet
