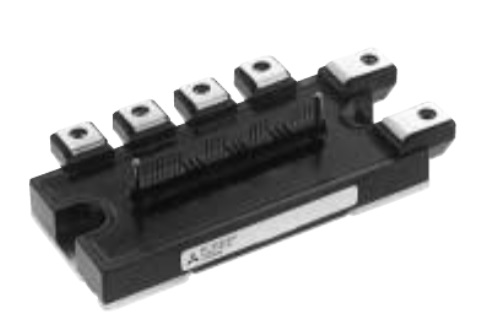

PM75RLA060 Mitsubishi - Intelligent Power Module

PM75RLA060 Description

PM75RLA060 is a 600 V intelligent power module (IPM) made by Mitsubishi Electric. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters.

We help engineers and repair technicians find parts like the PM75RLA060, including obsolete ones. Send a quick RFQ for current pricing and delivery. Before ordering, please confirm ratings and pin-out with the official datasheet.

Target Applications

Mitsubishi PM75RLA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), three-phase inverter + current-sense regenerative brake IGBT, CSTBT chip
Built-in protection	Short circuit, over temperature, under voltage; error output from each arm
Inverter VCES / IC	600 V / ±75 A (ICP ±150 A)
Brake VCES / IC	600 V / 50 A (ICP 100 A)
Isolation voltage	2500 Vrms (60 Hz, AC 1 min)
