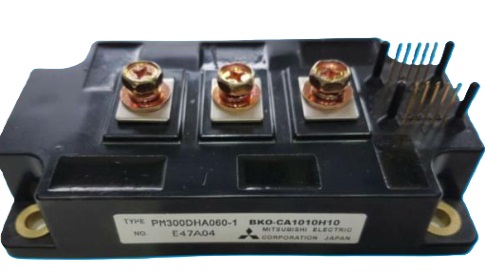

PM300DHA-060 Mitsubishi - Intelligent Power Module

PM300DHA-060 Description

Mitsubishi Electric PM300DHA-060 is an intelligent power module (IPM) rated at 600 V and 300 A. An IPM like this simplifies inverter design: drive, short-circuit and over-temperature protection are already inside the package.

Need the PM300DHA-060? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi PM300DHA-060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM300DHA-060 is a 600 V, 300 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	300 A
Datasheet	Available on this page (PDF)

PM300DHA-060 Video

Technical document (PDF)  |  Request a quote for PM300DHA-060 (reply within 24 hours)
