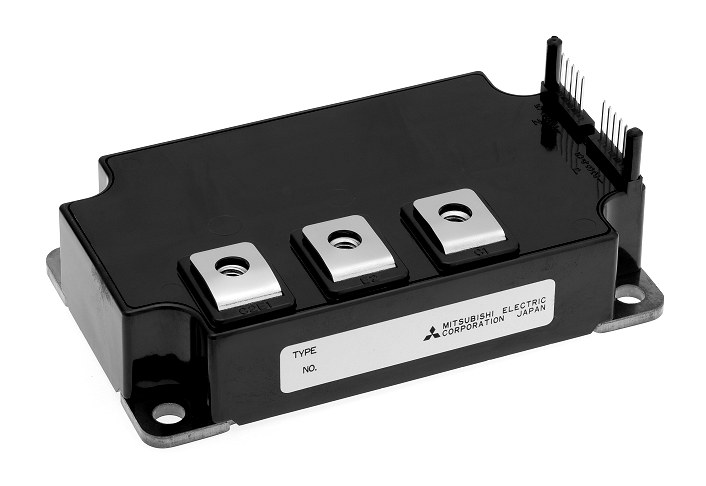

PM300DV1A120 Mitsubishi - Intelligent Power Module
PM300DV1A120 Description
PM300DV1A120 is a 1200 V / 300 A dual (half-bridge) intelligent power module (IPM) from Mitsubishi Electric (V1A package). Typical applications: general purpose inverter, servo drives and other motor controls.
USComponent supplies PM300DV1A120 and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Adopting new 5th generation Full-Gate CSTBT chip
- The over-temperature protection which detects the chip surface temperature of CSTBT is adopted
- Error output signal is possible from all each protection upper and lower arm of IPM
- Compatible V-series package. • Monolithic gate drive & protection logic • Detection, protection & status indication circuits for, short-circuit, over-temperature & under-voltage
- Monolithic gate drive & protection logic
- Detection, protection & status indication
Target Applications
Mitsubishi PM300DV1A120 is used for General purpose inverter, servo drives and other motor controls.
Key Specifications
PM300DV1A120 is a 1200 V / 300 A dual (half-bridge) intelligent power module (IPM) from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | Intelligent power module (IPM) |
| Series | V1 series |
| Configuration | Dual (half-bridge) |
| Collector-emitter voltage (VCES) | 1200 V |
| Collector current (IC) | 300 A |
| Isolation voltage (Viso) | 2,500 V RMS |
| Package | V1A |
| Package size | 70 x 120 mm |
| Supply status (Mitsubishi) | Not Recommended for New Designs |
| Datasheet | Available on this page (PDF) |
Status: Mitsubishi Electric lists PM300DV1A120 as Not Recommended for New Designs. USComponent can still source PM300DV1A120 and help you find a suitable alternative.
Technical document (PDF) | Request a quote for PM300DV1A120 (reply within 24 hours)
