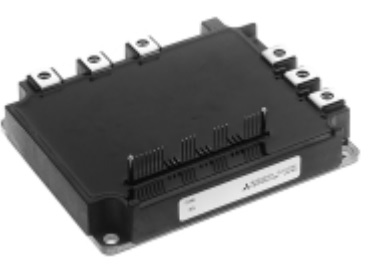

PM300CSD060Mitsubishi - Intelligent Power Module

PM300CSD060 Description

Mitsubishi Electric PM300CSD060 is an intelligent power module (IPM) rated at 600 V and 300 A. Components of this type are commonly used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent, a BBB A+ accredited business, helps engineers and maintenance teams source power semiconductors and industrial components, including older and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM300CSD060.

Target Applications

Mitsubishi PM300CSD060 is used for General Purpose Inverter, Uninterruptible Power Supply, Servo & Spindle Drive for CNC Machine Tools, Robotics (Servo Drive for Robots), Switching Power Supplies for Welding Machines.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), six-pack (three-phase inverter)
Built-in protection	Short circuit, over current, over temperature, under voltage (monolithic gate drive and protection logic)
VCES	600 V
IC	±300 A (TC = 25 °C)
ICP	±600 A
Isolation voltage	2500 Vrms (60 Hz, AC 1 min)
