PM50CSD060 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 50A

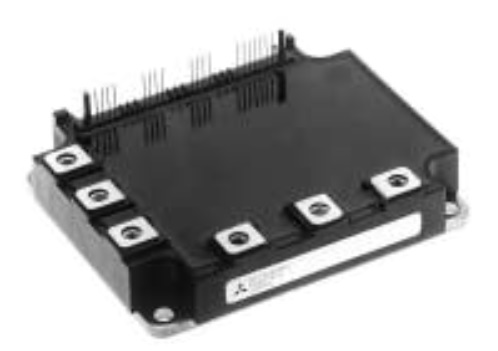

PM50CSD060, MITSUBISHI, Intelligent Power Module Flat-base Type Insulated Package

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

PM50CSD060 Description

PM50CSD060 is an Intellimod intelligent power module, three phase IGBT inverter output from Powerex / Mitsubishi, rated 600V, 50A. Typical applications: UPS, motion/servo control and power supplies.

USComponent supplies PM50CSD060 and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Complete output power circuit
  • Gate drive circuit
  • Protection logic: short circuit, over current, over temperature, under voltage
  • Isolated base

Target Applications

Mitsubishi PM50CSD060 is used for UPS, motion/servo control and power supplies.

Key Specifications

PM50CSD060 is an Intellimod intelligent power module, three phase IGBT inverter output from Powerex / Mitsubishi, rated 600V, 50A. Source: manufacturer datasheet.

ParameterValue
ManufacturerPowerex / Mitsubishi
Collector-emitter voltage VCES600 V
Collector current ±IC (Tc = 25 °C)50 A
Peak collector current ±ICP100 A
Isolation voltage2500 V (AC 1 min)
Switching frequencyup to 20 kHz
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for PM50CSD060 (reply within 24 hours)
