PM300CLA060 Mitsubishi - Intelligent Power Module

Category: Intelligent Power Modules (IPM)

Specifications: 600V, 300A

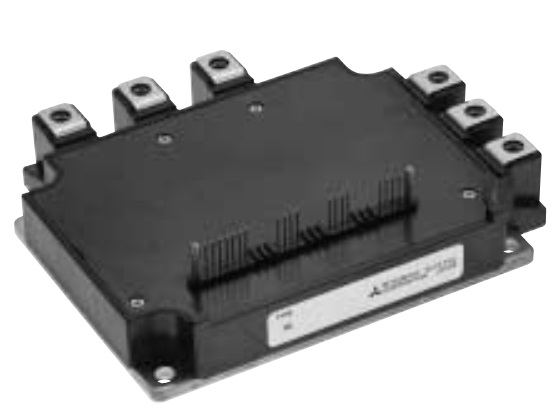

PM300CLA060, Mitsubishi, Power Transistor Module

Price: $350.00

Availability and lead time confirmed after you order or ask.

Or email sales@uscomponent.com or call 1-281-968-0718.

Add To Cart

We accept major credit cards and NET-TERMS.

PM300CLA060 Description

Rated at 600 V and 300 A, the Mitsubishi Electric PM300CLA060 is an intelligent power module (IPM). The module contains six switches arranged as a three-phase bridge (6-in-1). Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PM300CLA060 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

PM300CLA060 is a 600 V, 300 A intelligent power module from Mitsubishi Electric: 3-phase IGBT inverter with gate drive and protection circuits.

  • 3-phase 300 A, 600 V current-sense IGBT type inverter
  • Monolithic gate drive & protection logic
  • Detection, protection & status indication circuits for short-circuit, over-temperature & under-voltage
  • Acoustic noise-less 30 kW class inverter application

Target Applications

Mitsubishi PM300CLA060 is used for General purpose inverter, servo drives and other motor controls.

Key Specifications

PM300CLA060 is a 600 V, 300 A intelligent power module from Mitsubishi Electric: 3-phase IGBT inverter with gate drive and protection circuits. Source: Mitsubishi intelligent power module datasheet PM300CLA060 (flat-base type, insulated package).

ParameterValue
ManufacturerMitsubishi Electric
Product typeIntelligent power module, flat-base type, insulated package
Configuration3-phase IGBT inverter with gate drive and protection circuits
Collector-emitter voltage VCES600 V
Inverter collector current ±IC / ±ICP300 A / 600 A (Tc = 25 °C)
Inverter collector dissipation PC801 W (Tc = 25 °C)
Supply voltage VCC(surge) (P-N)500 V
Supply voltage protected by OC & SC, VCC(PROT)400 V (Tj = 125 °C start)
Inverter VCE(sat)1.6 V typ, 2.1 V max (IC = 300 A, 25 °C); 1.5 V typ, 2.0 V max at 125 °C
FWDi forward voltage VEC2.2 V typ, 3.3 V max (-IC = 300 A)
Switching timeton 0.5 / 1.0 / 2.4 µs, tc(on) 0.4 / 1.0 µs, toff 1.2 / 2.5 µs, tc(off) 0.5 / 1.0 µs, trr 0.2 / 0.4 µs
ProtectionShort circuit trip 600 A min; over temperature trip 135 min / 145 typ °C; under voltage trip 11.5 / 12.0 / 12.5 V; fault output
Thermal resistance Rth(j-c) max0.16 °C/W inverter IGBT; 0.25 °C/W inverter FWDi (per 1/6); Rth(c-f) 0.023 °C/W
Junction temperature Tj-20 to +150 °C
Storage temperature-40 to +125 °C
Isolation voltage Viso2500 Vrms (60 Hz sinusoidal, AC 1 min)
Weight800 g typ
PWM input frequency fPWM≤ 20 kHz
DatasheetAvailable on this page (PDF)

PM300CLA060 Video

PM300CLA060 video

Technical document (PDF)  |  Request a quote for PM300CLA060 (reply within 24 hours)
