PM150CVA060 Mitsubishi - Intelligent Power Module

PM150CVA060 Description

Mitsubishi Electric makes the PM150CVA060, a 600 V, 150 A intelligent power module (IPM). It is mostly used in small and mid-size AC drives and servo amplifiers, where built-in gate drive and protection save board space.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PM150CVA060 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi PM150CVA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM150CVA060 is a 600 V, 150 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	600 V
Collector current (IC)	150 A

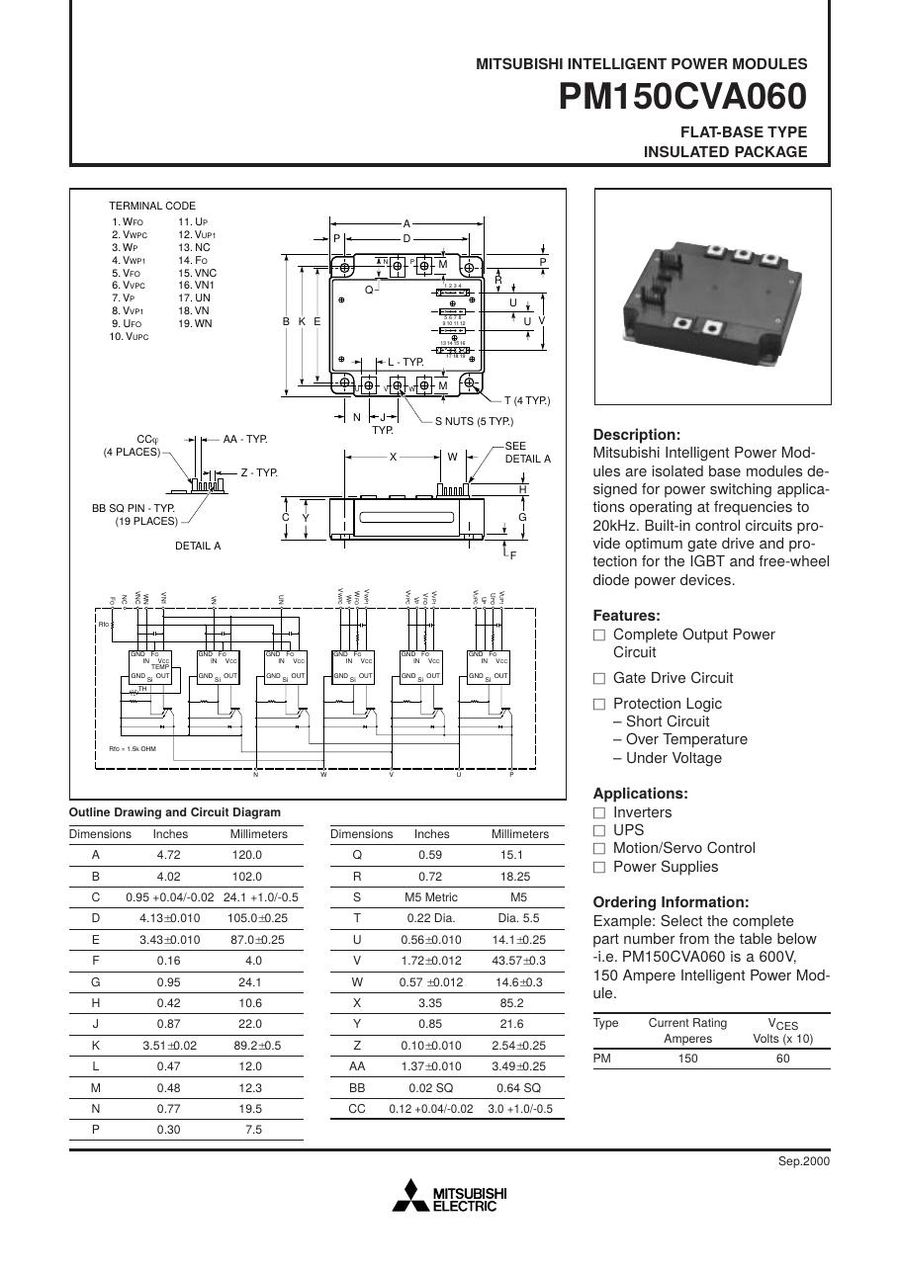

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PM150CVA060 (reply within 24 hours)
