PM150CSE120 Mitsubishi - Intelligent Power Module

PM150CSE120 Description

Mitsubishi Electric PM150CSE120 is an intelligent power module (IPM) rated at 1200 V and 150 A. Because the gate drivers and protection circuits are built in, it is popular in compact motor drives, servo amplifiers and appliance inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the PM150CSE120 and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi PM150CSE120 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

PM150CSE120 is a 1,200 V, 150 A intelligent power module (IPM). Source: manufacturer datasheet.

Parameter	Value
Product type	Intelligent power module (IPM)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	150 A

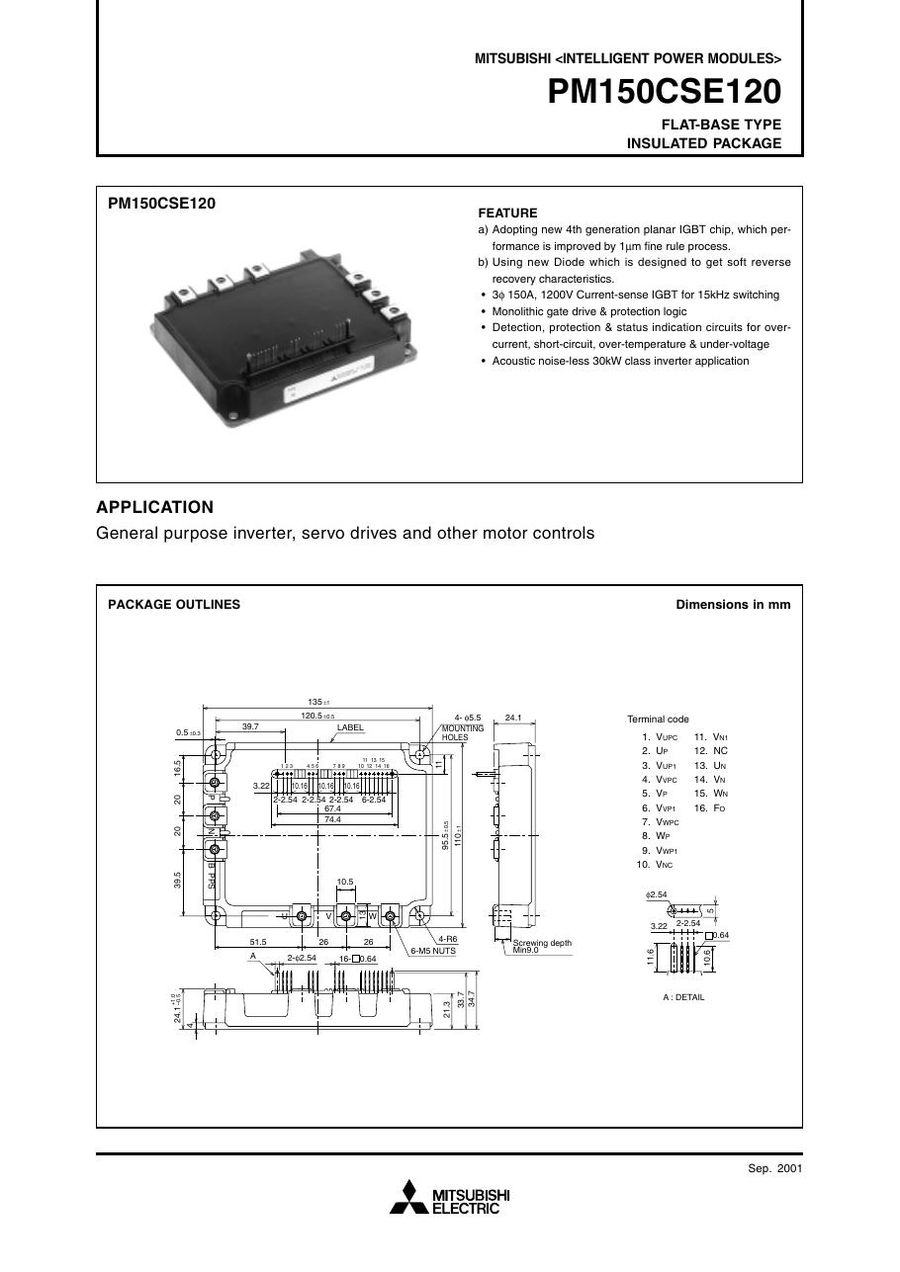

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for PM150CSE120 (reply within 24 hours)
