PM150CSA060Mitsubishi - Intelligent Power Module

PM150CSA060 Description

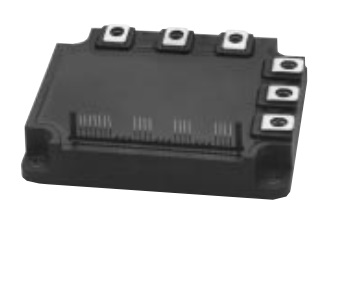

Mitsubishi Electric PM150CSA060 is an intelligent power module (IPM) rated at 600 V and 150 A. Flat-base Type Insulated Package Intelligent Power Module. This type of device is widely used in compact motor drives, servo amplifiers and inverter-based equipment, where the IPM combines power switches with built-in gate drive and protection circuitry.

USComponent specializes in sourcing power modules and industrial electronic components, including legacy and hard-to-find parts for repair and maintenance. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the PM150CSA060.

Target Applications

Mitsubishi PM150CSA060 is used for compact inverter stages in AC motor drives, servo amplifiers, air conditioner and appliance inverters, elevators and general purpose inverters.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Intelligent Power Module (IPM), six-pack (three-phase inverter)
Built-in protection	Short circuit, over current, over temperature, under voltage
VCES	600 V
IC	150 A (TC = 25 °C)
VCE(sat) typ.	1.8 V @ 150 A
Supply voltage protected by OC and SC	400 V
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 1.47 - 1.96 N·m
Mounting torque	M5: 1.47 - 1.96 N·m
Weight	550 g
