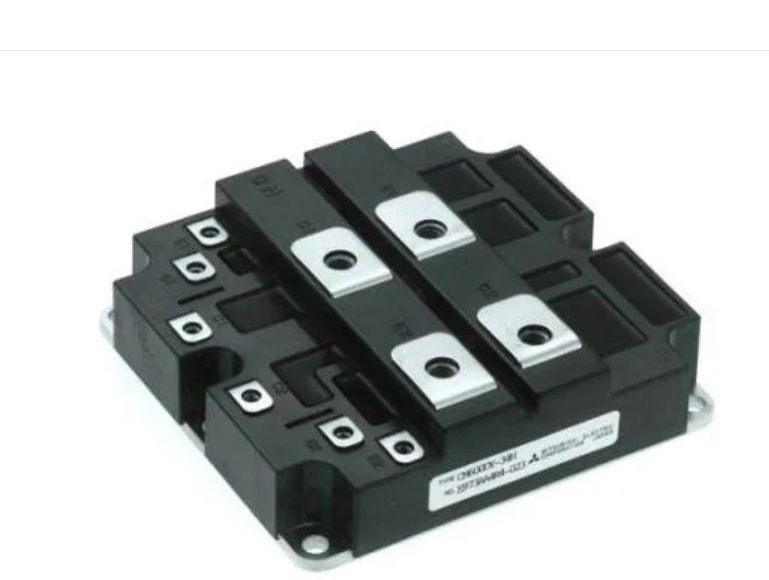

CM800DZ-34H Mitsubishi - IGBT Module

CM800DZ-34H Description

The CM800DZ-34H from Mitsubishi Electric is an IGBT module with a 1700 V / 800 A rating. The module contains two switches in a half-bridge (2-in-1) arrangement. Typical uses include motor drives, servo amplifiers, induction heating, welding power sources and grid-tie inverters. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

Looking for a replacement CM800DZ-34H? USComponent can quote new and hard-to-find stock and ships worldwide. Request a quote for pricing and lead time, and double-check the datasheet to make sure it fits your application.

Target Applications

Mitsubishi CM800DZ-34H is used for Traction drives, High Reliability Converters / Inverters and DC chopper.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual / half-bridge (2-in-1)
VCES	1700 V
IC nom	800 A
Fuji Electric cross-reference	2MBI800VT-170E (for reference only; please compare datasheets to determine suitability)

CM800DZ-34H Video

Technical document (PDF)  |  Request a quote for CM800DZ-34H (reply within 24 hours)
