CM75DY-28H Mitsubishi - IGBT Module

CM75DY-28H Description

CM75DY-28H is a 1400 V, 75 A IGBT module made by Mitsubishi Electric. The module contains two switches in a half-bridge (2-in-1) arrangement. It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM75DY-28H and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Summary of Features

Target Applications

Mitsubishi CM75DY-28H is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM75DY-28H is a 1,400 V, 75 A IGBT module, dual (2-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Dual (2-in-1)
Collector-emitter voltage (VCES)	1,400 V
Collector current (IC)	75 A
Isolation voltage	2,500 V

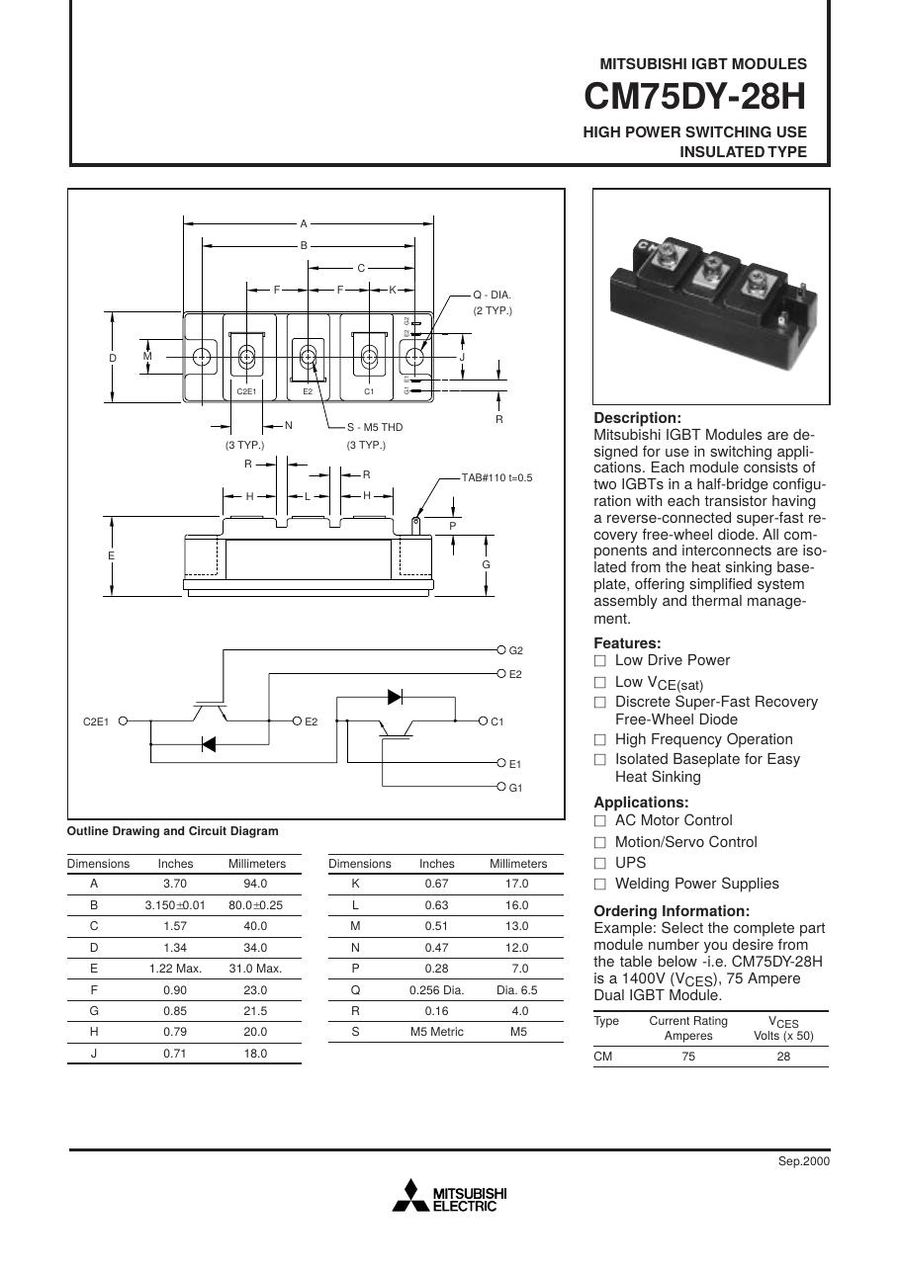

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM75DY-28H (reply within 24 hours)
