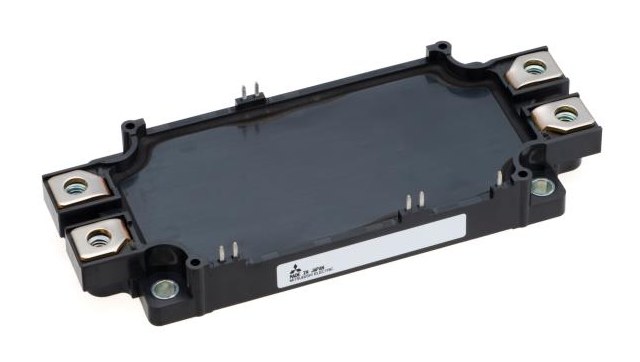

CM225DX-34T Mitsubishi - IGBT Module
CM225DX-34T Description
CM225DX-34T is a 1700 V / 225 A dual (half-bridge) IGBT module from Mitsubishi Electric (NX Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.
USComponent supplies CM225DX-34T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.
Summary of Features
- Flat base type
- Copper base plate (Nickel-plating)
- RoHS Directive compliant
- Tin-plating pin terminals
- Tin-plating pressfit terminals
- UL Recognized under UL1557, File No. E323585
Target Applications
Mitsubishi CM225DX-34T is used for AC Motor Control, Motion/Servo Control, Power supply.
Key Specifications
CM225DX-34T is a 1700 V / 225 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.
| Parameter | Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Product type | IGBT module |
| Series | T series |
| Configuration | Dual (half-bridge) |
| Collector-emitter voltage (VCES) | 1700 V |
| Collector current (IC) | 225 A |
| Isolation voltage (Viso) | 4,000 V RMS |
| Package | NX Type |
| Package size | 62 x 152 mm |
| Supply status (Mitsubishi) | Active |
| Datasheet | Available on this page (PDF) |
Note: the Mitsubishi datasheet covers CM225DX-34T / CM225DXP-34T.
