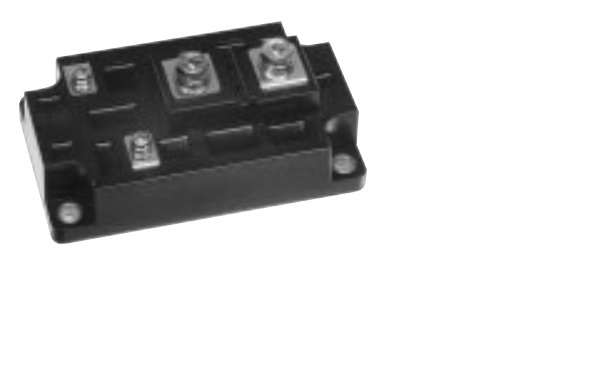

CM400HA-12E Mitsubishi - IGBT Module

CM400HA-12E Description

The CM400HA-12E from Mitsubishi Electric is an IGBT module with a 600 V / 400 A rating. The module contains a single switch with its freewheeling diode (1-in-1). You'll typically find it in variable-frequency drives, servo amplifiers, UPS systems, welding machines and solar or wind inverters.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the CM400HA-12E, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi CM400HA-12E is used for motor drives and inverters, servo amplifiers, UPS systems, welding machines and other industrial power switching equipment.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Single switch (1-in-1)
VCES	600 V
IC nom	400 A
Similar-rating parts	1MBI400L-060, CM400HA-12H (same nominal voltage and current rating, for reference only. Package, pinout and characteristics may differ; please compare datasheets to determine suitability)
