CM600HA-24E Mitsubishi - IGBT Power Transistor Module

CM600HA-24E Description

CM600HA-24E is a 1200 V, 600 A IGBT module made by Mitsubishi Electric. The module contains a single switch with its freewheeling diode (1-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies.

Need the CM600HA-24E? USComponent stocks and sources power modules for repair shops, OEMs and maintenance teams worldwide. Request a quote and we'll confirm availability and lead time. Always compare against the datasheet before ordering.

Summary of Features

Target Applications

Mitsubishi CM600HA-24E is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

CM600HA-24E is a 1,200 V, 600 A IGBT module, single (1-in-1) configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single (1-in-1)
Collector-emitter voltage (VCES)	1,200 V
Collector current (IC)	600 A

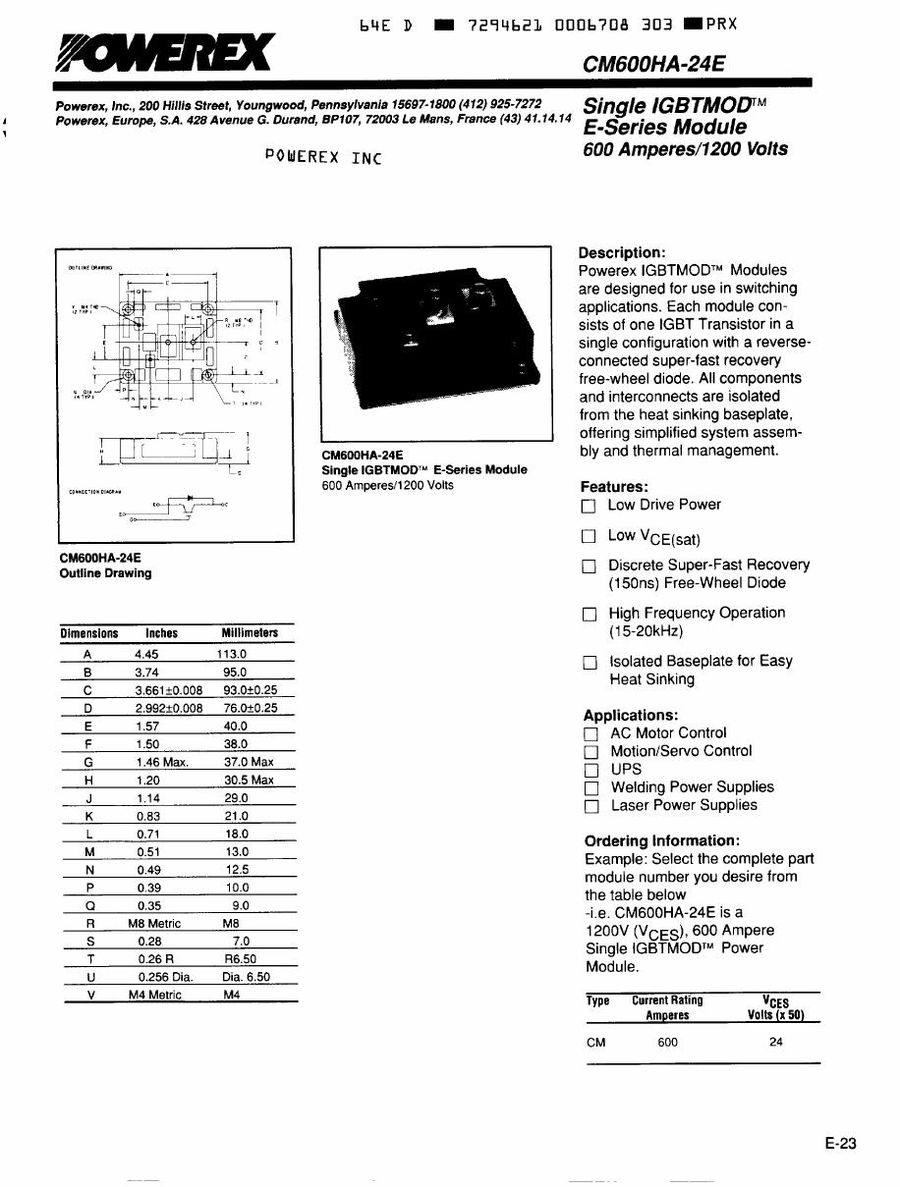

Datasheet	Available on this page (PDF)
