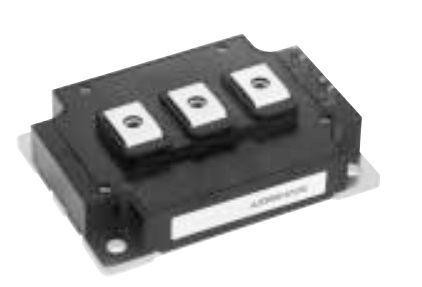

CM400DY-24A Mitsubishi - IGBT Module

CM400DY-24A Description

The CM400DY-24A from Mitsubishi Electric is an IGBT module with a 1200 V / 400 A rating. The module contains two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the CM400DY-24A, and please confirm ratings against the datasheet before ordering.

Target Applications

Mitsubishi CM400DY-24A is used for AC drive inverters & Servo controls, etc.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual - two IGBTs in half-bridge configuration with free-wheel diodes
Series	A-Series
VCES	1200 V
IC	400 A (DC, TC = 85 °C)
ICM (peak)	800 A
VCE(sat) typ.	2.1 V @ 400 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 3.5 - 4.5 N·m
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	580 g
Junction temperature	-40 to +150 °C
