CM300DY-24A Mitsubishi - IGBT Module

CM300DY-24A Description

The Mitsubishi Electric CM300DY-24A is an IGBT module, rated for 1200 V and 300 A. The module contains two switches in a half-bridge (2-in-1) arrangement. Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment.

USComponent has been supplying power semiconductors since 2001, including discontinued and hard-to-find part numbers. Send us an RFQ for the CM300DY-24A and we will reply with price, condition and lead time. Please check the manufacturer's datasheet to confirm ratings, package and pin-out before you order.

Target Applications

Mitsubishi CM300DY-24A is used for AC drive inverters & Servo controls, etc.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual - two IGBTs in half-bridge configuration with free-wheel diodes
Series	A-Series
VCES	1200 V
IC	300 A (DC, TC = 80 °C)
ICM (peak)	600 A
VCE(sat) typ.	2.1 V @ 300 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M6: 3.5 - 4.5 N·m
Mounting torque	M6: 3.5 - 4.5 N·m
Weight	400 g
Junction temperature	-40 to +150 °C

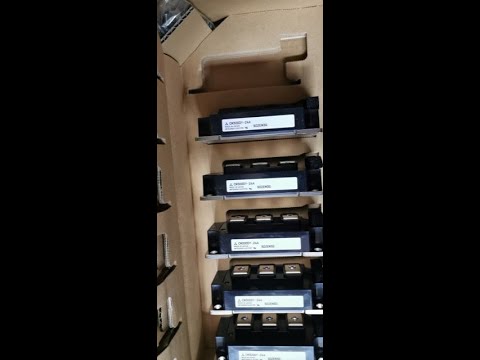

CM300DY-24A Video

Technical document (PDF)  |  Request a quote for CM300DY-24A (reply within 24 hours)
