CM10MD-12H Mitsubishi - IGBT Module

CM10MD-12H Description

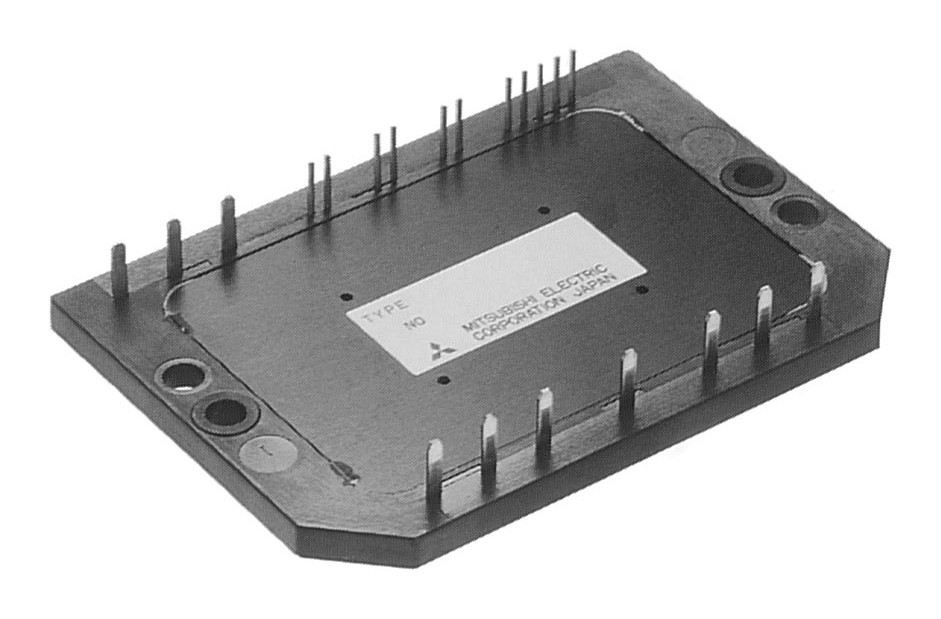

CM10MD-12H is an IGBT module, CIB (3φ inverter + 3φ converter + brake) from Mitsubishi Electric, rated 600V, 10A. Typical applications: AC & DC motor controls, general purpose inverters, servo controls, NC and robotics.

USComponent supplies CM10MD-12H and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM10MD-12H is used for AC & DC motor controls, general purpose inverters, servo controls, NC and robotics.

Key Specifications

CM10MD-12H is an IGBT module, CIB (3φ inverter + 3φ converter + brake) from Mitsubishi Electric, rated 600V, 10A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	Mitsubishi Electric
Collector-emitter voltage VCES	600 V
Collector current IC (Tc = 25 °C)	10 A
ICM (pulse)	20 A
Configuration	3φ inverter + 3φ converter + brake
Isolation voltage	2500 V AC, 1 min
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for CM10MD-12H (reply within 24 hours)
