CM300DY-12HMitsubishi - IGBT Module

CM300DY-12H Description

The Mitsubishi Electric CM300DY-12H is an IGBT module rated at 600 V and 300 A, available from USComponent. High Power Switching Use Insulated Type IGBT Module. This type of device is widely used in variable-frequency motor drives, servo drives, UPS systems, welding machines, induction heating and solar or wind inverters.

USComponent supplies power semiconductors and industrial electronic components to engineers, OEMs and maintenance teams worldwide, including legacy and hard-to-find part numbers. Please confirm ratings, package and pin-out against the manufacturer's datasheet before ordering, and request a quote for current pricing and lead time on the CM300DY-12H.

Summary of Features

CM300DY-12H is a 600V 300A IGBT Module.

Target Applications

Mitsubishi CM300DY-12H is used for UPS, NC machine, AC-Drive control, Servo and Welders.

Key Specifications

Manufacturer	Mitsubishi Electric
Configuration	Dual - two IGBTs in half-bridge configuration with free-wheel diodes
Series	H-Series
VCES	600 V
IC	300 A (TC = 25 °C)
ICM (peak)	600 A
VCE(sat) typ.	2.1 V @ 300 A
Isolation voltage	2500 Vrms (AC, 1 min)
Terminal torque	M5: 1.47 - 1.96 N·m
Mounting torque	M6: 1.96 - 2.94 N·m
Weight	270 g
Junction temperature	-40 to +150 °C

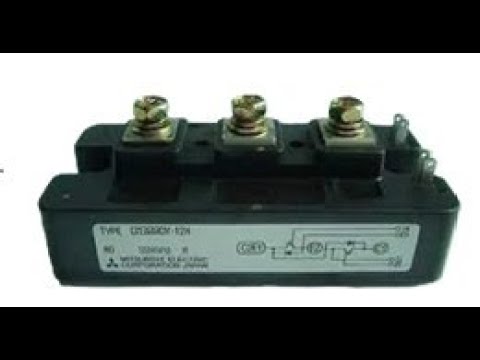

CM300DY-12H Video
