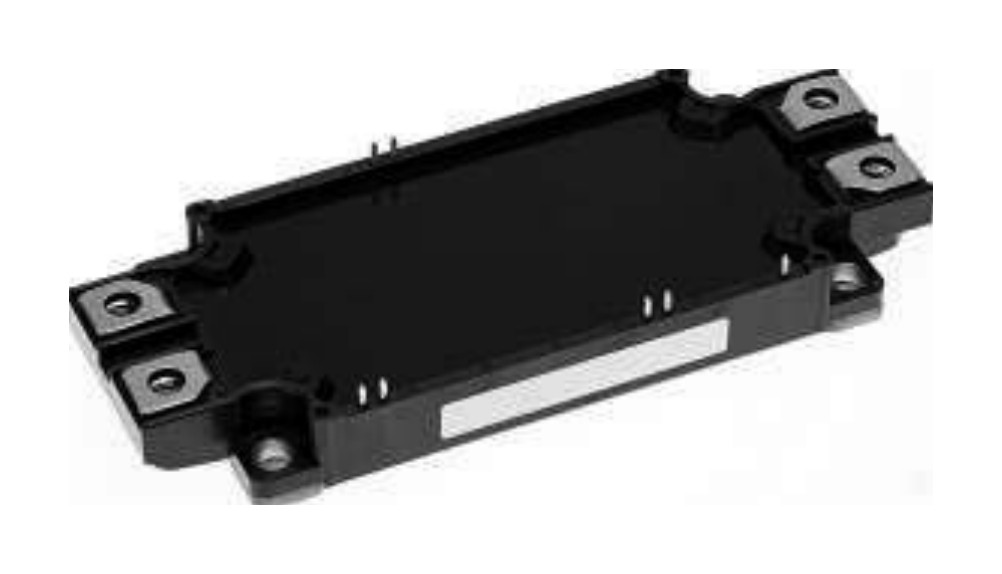

CM300DX-34SA Mitsubishi - IGBT Module

CM300DX-34SA Description

CM300DX-34SA is a 1,700 V / 300 A dual (half-bridge) IGBT module from Mitsubishi Electric, SA series (6th generation IGBT). Datasheet ratings: 300 A DC at TC = 125 °C, VCE(sat) 2.00 V typ. at 300 A, 4,000 V RMS isolation. Typical applications: AC Motor Control, Motion/Servo Control, Power supply. It is discontinued by Mitsubishi; USComponent still sources it.

USComponent supplies CM300DX-34SA and other Mitsubishi power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM300DX-34SA is used for AC Motor Control, Motion/Servo Control and Power supply.

Key Specifications

CM300DX-34SA is a 1,700 V / 300 A dual (half-bridge) IGBT module from Mitsubishi Electric, SA series (6th generation IGBT). Source: Mitsubishi Electric datasheet (January 2017).

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	SA series (6th generation IGBT)
Configuration	Dual switch (half-bridge)
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC, DC, TC = 125 °C)	300 A
Repetitive peak collector current (ICRM, pulse)	600 A
Total power dissipation (Ptot, TC = 25 °C)	3,000 W
VCE(sat) (terminal), IC = 300 A, VGE = 15 V, Tj = 25 °C	2.00 V typ. / 2.50 V max.
Gate-emitter threshold voltage VGE(th)	5.4 / 6.0 / 6.6 V (min. / typ. / max.)
Isolation voltage (Visol, AC 1 min)	4,000 V RMS
Maximum junction temperature (Tjmax)	175 °C
Operating junction temperature	-40 to +150 °C
Mounting torque (to heat sink)	M5 screw: 2.5 - 3.5 N·m (typ. 3.0)
Mounting torque (main terminals)	M6 screw: 3.5 - 4.5 N·m (typ. 4.0)
Mass (typ.)	350 g
Supply status (Mitsubishi)	Discontinued by Mitsubishi
Applications (datasheet)	AC Motor Control, Motion/Servo Control, Power supply, etc.
Datasheet	Available on this page (PDF)
