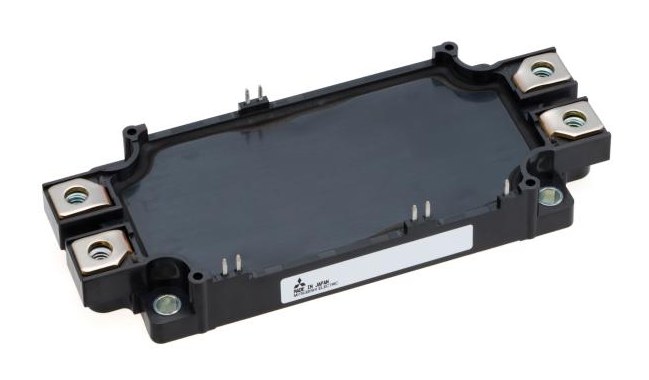

CM300DX-13T Mitsubishi - IGBT Module

CM300DX-13T Description

CM300DX-13T is a 650 V / 300 A dual (half-bridge) IGBT module from Mitsubishi Electric (NX Type package). Typical applications: AC Motor Control, Motion/Servo Control, Power supply.

USComponent supplies CM300DX-13T and other Mitsubishi power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Mitsubishi CM300DX-13T is used for AC Motor Control, Motion/Servo Control, Power supply.

Key Specifications

CM300DX-13T is a 650 V / 300 A dual (half-bridge) IGBT module from Mitsubishi Electric. Source: Mitsubishi Electric datasheet and product list.

Parameter	Value
Manufacturer	Mitsubishi Electric
Product type	IGBT module
Series	T series
Configuration	Dual (half-bridge)
Collector-emitter voltage (VCES)	650 V
Collector current (IC)	300 A
Isolation voltage (Viso)	2,500 V RMS
Package	NX Type
Package size	62 x 152 mm
Supply status (Mitsubishi)	Active
Datasheet	Available on this page (PDF)

Note: the Mitsubishi datasheet covers CM300DX-13T / CM300DXP-13T.
