MDD26-16N1B IXYS - Standard Rectifier Module

MDD26-16N1B Description

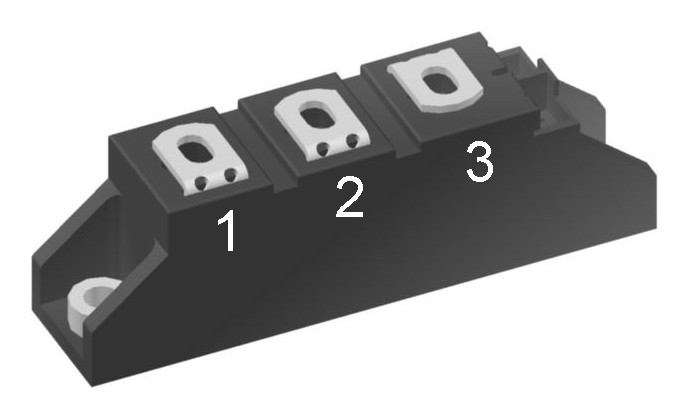

MDD26-16N1B is a diode module, 2 diodes, TO-240 AA from IXYS, rated 1600V, 2x36A. Typical applications: Supplies for DC power equipment, DC supply for PWM inverter and field supply for DC motors.

USComponent supplies MDD26-16N1B and other power semiconductors and power supplies, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDD26-16N1B is used for Supplies for DC power equipment, DC supply for PWM inverter and field supply for DC motors.

Key Specifications

MDD26-16N1B is a diode module, 2 diodes, TO-240 AA from IXYS, rated 1600V, 2x36A. Source: manufacturer datasheet.

Parameter	Value
Manufacturer	IXYS
Repetitive peak reverse voltage VRRM	1600 V
Non-repetitive peak reverse voltage VRSM	1700 V
Average forward current IFAVM	2 x 36 A (TC = 100 °C, 180° sine)
RMS forward current IFRMS	2 x 60 A
Surge current IFSM (10 ms, 45 °C)	650 A
I²t (10 ms, 45 °C)	2100 A²s
Isolation voltage	3600 V~
Package	JEDEC TO-240 AA
Datasheet	Available on this page (PDF)

Note: data taken from the IXYS datasheet of MDD 26 series, which covers MDD26-16N1B.

Note: Current rating is 2 x 36 A (IFAVM), not 240 A.
