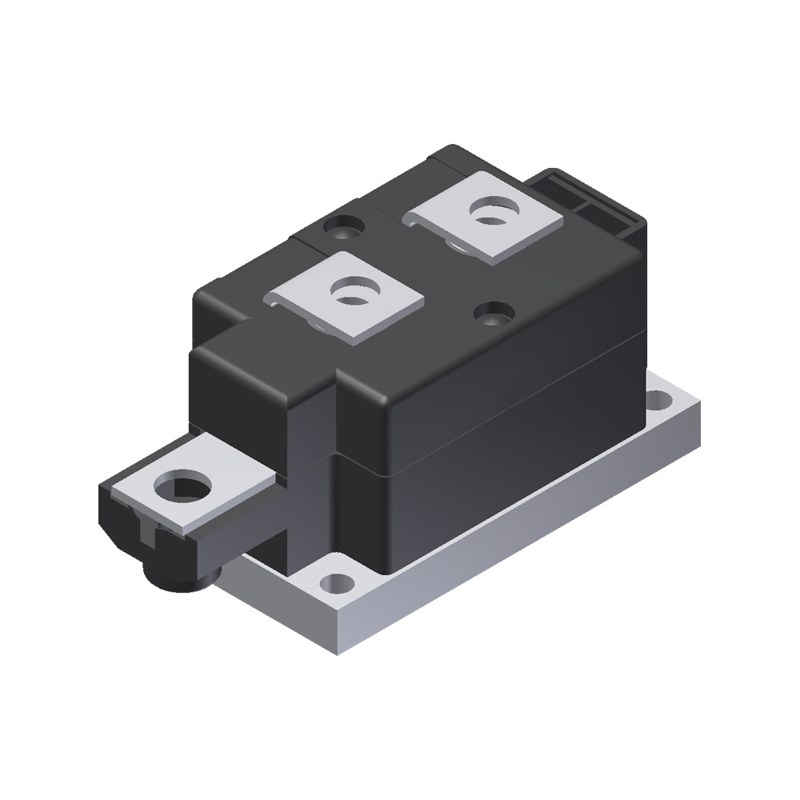

MDD255-20N1 IXYS - Diode Module

MDD255-20N1 Description

MDD255-20N1 is a 2000 V / 270 A rectifier diode module from IXYS (Y1 package). Typical applications: diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

USComponent supplies MDD255-20N1 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

IXYS MDD255-20N1 is used for Diode for main rectification, For single and three phase bridge configurations, Supplies for DC power equipment, Input rectifiers for PWM inverter, Battery DC power supplies, Field supply for DC motors.

Key Specifications

MDD255-20N1 is a 2000 V / 270 A rectifier diode module from IXYS (now part of Littelfuse) in a Y1 package. Source: IXYS (Littelfuse) datasheet and product data.

Parameter	Value
Manufacturer	IXYS (Littelfuse)
Product type	Rectifier diode module
Configuration	Phase leg
Repetitive peak reverse voltage (VRRM)	2 x 2000 V
Average forward current (IFAV)	270 A
Package	Y1
Isolation voltage	3600 V~
Weight	750 g
Supply status	Active
Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for MDD255-20N1 (reply within 24 hours)
