FBE22-06N1 IXYS - Diode Module

Category: Diode & Rectifier Modules

Specifications: 600V, 22A

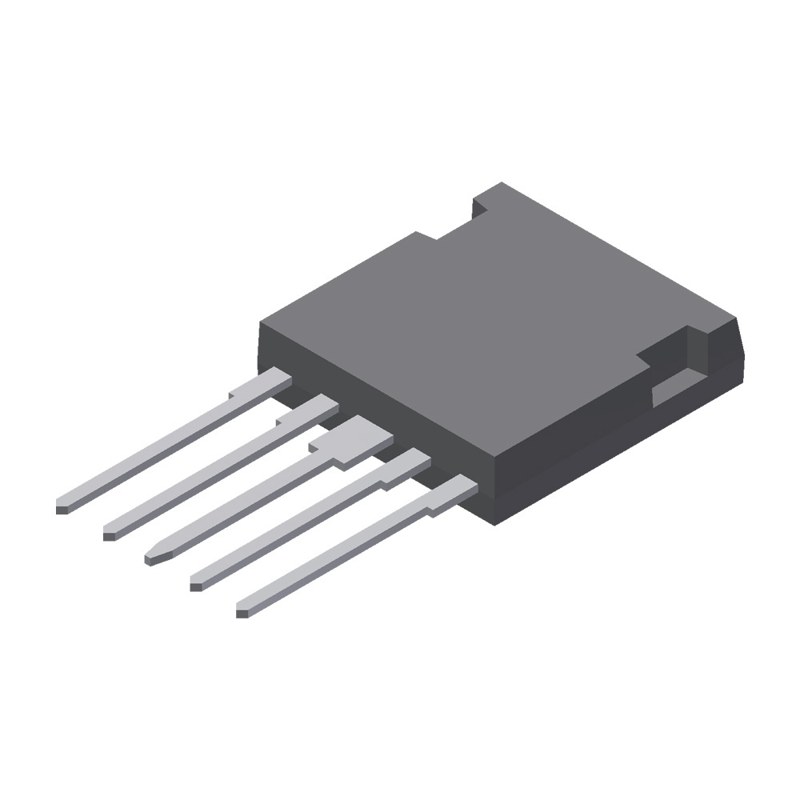

FBE22-06N1 IXYS Diode Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FBE22-06N1 Description

FBE22-06N1 is a 600 V / 22 A fast recovery diode (FRED) module from IXYS (i4-Pac package). Typical applications: rectifiers in switch mode power supplies (SMPS).

USComponent supplies FBE22-06N1 and other IXYS power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Planar passivated chips
  • Very low leakage current
  • Very short recovery time
  • Improved thermal behaviour
  • Very low Irm-values
  • Very soft recovery behaviour
  • Avalanche voltage rated for reliable operation
  • Soft reverse recovery for low EMI/RFI
  • Power dissipation within the diode
  • Turn-on loss in the commutating switch

Target Applications

IXYS FBE22-06N1 is used for Rectifiers in switch mode power supplies (SMPS).

Key Specifications

FBE22-06N1 is a 600 V / 22 A fast recovery diode (FRED) module from IXYS (now part of Littelfuse) in a i4-Pac package. Source: IXYS (Littelfuse) datasheet and product data.

ParameterValue
ManufacturerIXYS (Littelfuse)
Product typeFast recovery diode (FRED) module
ConfigurationSingle-Phase Bridges
Repetitive peak reverse voltage (VRRM)600 V
Average output current (IdAV)22 A
Packagei4-Pac
Isolation voltage3000 V~
Weight6 g
Supply statusObsolete
DatasheetAvailable on this page (PDF)

Status: IXYS / Littelfuse lists FBE22-06N1 as obsolete. USComponent can still source FBE22-06N1 and help you find a suitable alternative.

Technical document (PDF)  |  Request a quote for FBE22-06N1 (reply within 24 hours)
