FB50R07W2E3_B23 Infineon - IGBT Module

Also written as: FB50R07W2E3-B23

Category: IGBT Modules

Specifications: 650V, 50A

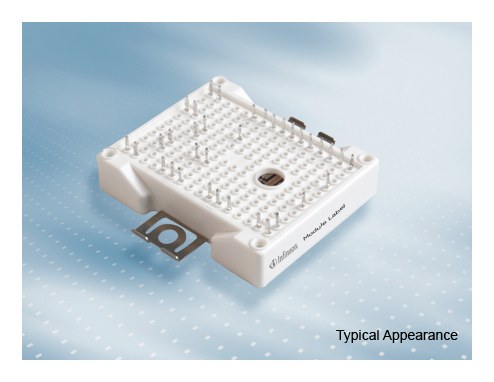

FB50R07W2E3_B23 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FB50R07W2E3_B23 Description

FB50R07W2E3_B23 is a 650 V / 50 A PIM IGBT module from Infineon Technologies. Typical applications: air conditioning.

USComponent supplies FB50R07W2E3_B23 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Trench IGBT 3
  • Low switching losses
  • Al2O3 substrate with low thermal resistance
  • Compact design
  • PressFIT contact technology
  • Rugged mounting due to integrated mounting clamps

Target Applications

Infineon FB50R07W2E3_B23 is used for Air conditioning.

Key Specifications

FB50R07W2E3_B23 is a 650 V / 50 A PIM IGBT module from Infineon Technologies (EasyPIM package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM
Collector-emitter voltage (VCES)650 V
Nominal collector current (IC nom)50 A
PackageEasyPIM
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FB50R07W2E3_B23 (reply within 24 hours)
