FB30R06W1E3 Infineon - IGBT Module

Category: IGBT Modules

Specifications: 600V, 30A

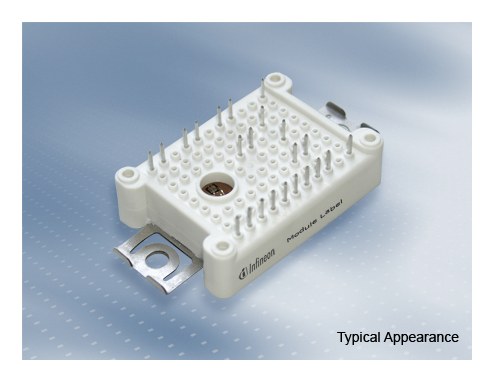

FB30R06W1E3 Infineon IGBT Module

Representative image – actual product may differ

Availability and lead time are confirmed in our quote.

  • ✓ Quote within 24 hours
  • ✓ Original manufacturer parts, inspected before shipping
  • ✓ Credit cards and NET terms accepted

Or email sales@uscomponent.com or call 1-281-968-0718.

FB30R06W1E3 Description

FB30R06W1E3 is a 600 V / 30 A PIM IGBT module from Infineon Technologies. Typical applications: auxiliary Inverters, Air Conditioning, Motor Drives.

USComponent supplies FB30R06W1E3 and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

  • Low Switching Losses
  • Trench IGBT 3
  • Vcesat with positive Temperature Coefficient
  • Low Vcesat
  • Al2O33 Substrate with Low Thermal Resistance
  • Compact design
  • Solder Contact Technology
  • Rugged mounting due to integrated mounting

Target Applications

Infineon FB30R06W1E3 is used for Auxiliary Inverters, Air Conditioning, Motor Drives.

Key Specifications

FB30R06W1E3 is a 600 V / 30 A PIM IGBT module from Infineon Technologies (EasyPIM package). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeIGBT module
ConfigurationPIM
Collector-emitter voltage (VCES)600 V
Nominal collector current (IC nom)30 A
PackageEasyPIM
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for FB30R06W1E3 (reply within 24 hours)
