bsm300ga170dn2 Infineon - IGBT

bsm300ga170dn2 Description

The bsm300ga170dn2 is an IGBT module made by Infineon Technologies. The module contains a single switch with its freewheeling diode (1-in-1). It is a common choice for inverter stages in AC drives, servo systems, welders and uninterruptible power supplies. Production of many older modules has ended, but we keep sourcing them for repair and maintenance customers.

USComponent has sourced power semiconductors for maintenance teams and OEMs since 2001. For price and availability of the bsm300ga170dn2, send us a request for quote. Please confirm the specifications against the manufacturer's datasheet before purchase.

Summary of Features

Target Applications

Infineon bsm300ga170dn2 is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

Manufacturer	Infineon Technologies (Siemens / eupec)
Configuration	Single switch IGBT module with fast free-wheeling diode
Package	Single switch 1, insulated metal base plate
VCES	1700 V
IC	440 A (TC = 25 °C) / 300 A (TC = 80 °C)

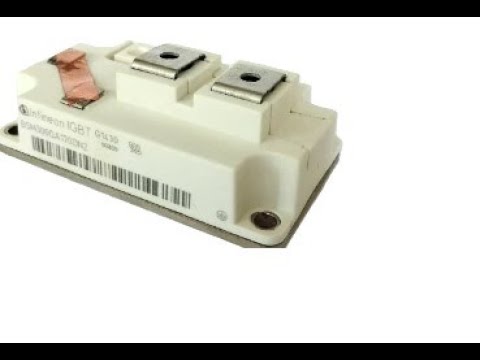

bsm300ga170dn2 Video

Technical document (PDF)  |  Request a quote for bsm300ga170dn2 (reply within 24 hours)
