BSM300GA170DN2S Infineon - IGBT Module

BSM300GA170DN2S Description

Infineon Technologies makes the BSM300GA170DN2S, an IGBT module. The module contains a single switch with its freewheeling diode (1-in-1). Engineers use it mainly in the inverter section of motor drives, as well as in UPS, welding and power-conversion equipment. If you are repairing older equipment, we can usually find this exact part, including date codes that are no longer in production.

USComponent is a BBB A+ accredited distributor that specializes in power modules and industrial components, new and legacy. Ask us for a quote on the BSM300GA170DN2S; we ship worldwide. Please verify the ratings and package against the manufacturer's datasheet first.

Summary of Features

Target Applications

Infineon BSM300GA170DN2S is used for inverters and AC motor drives, servo drives, UPS systems, welding machines, induction heating, solar and wind power converters and other high-power switching equipment.

Key Specifications

BSM300GA170DN2S is a 1,700 V, 300 A IGBT module, single configuration. Source: manufacturer datasheet.

Parameter	Value
Product type	IGBT module
Configuration	Single
Collector-emitter voltage (VCES)	1,700 V
Collector current (IC)	300 A

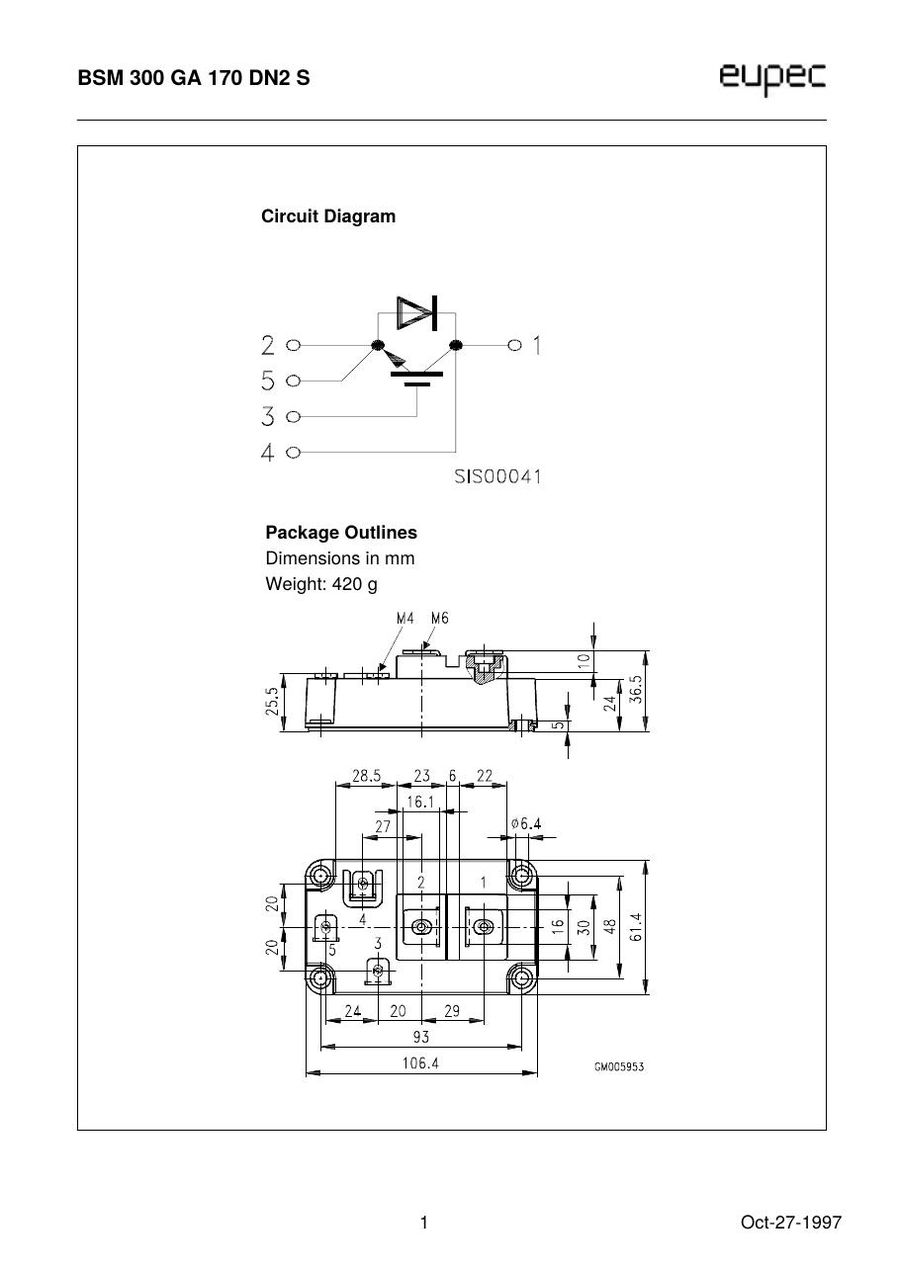

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for BSM300GA170DN2S (reply within 24 hours)
