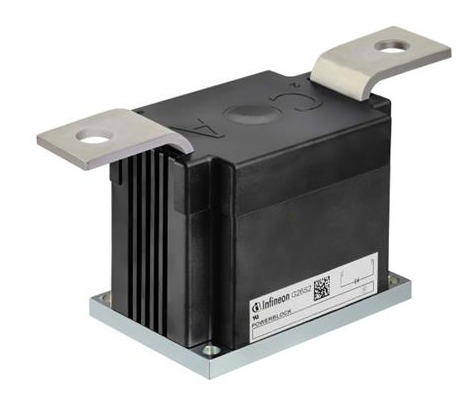

TZ810N22KOFB01 Infineon - Thyristor / Diode Module

TZ810N22KOFB01 Description

TZ810N22KOFB01 is an Infineon 2,200 V / 810 A single thyristor module, 70 mm PowerBLOCK.

USComponent supplies TZ810N22KOFB01 and other Infineon / eupec power modules, including discontinued types. Request a quote for price and lead time - we reply within 24 hours.

Summary of Features

Target Applications

Infineon TZ810N22KOFB01 is used for Phase control, AC controllers, rectifiers, soft starters, motor drives.

Key Specifications

TZ810N22KOFB01 is an Infineon (eupec) 2,200 V / 810 A single thyristor module, 70 mm PowerBLOCK. Key data from the Infineon type designation and Product Discontinuation notice.

Parameter	Value
Product type	Single thyristor module
Repetitive peak voltage (type code)	2,200 V
Current class (type code)	810 A
Package	70 mm PowerBLOCK (BG-PB70AT-1)

Status: discontinued by Infineon (Product Discontinuation PD_126_19, last order date 2020-01-15). Infineon lists no direct replacement for this part. USComponent can still source the original TZ810N22KOFB01.

Note: the datasheet on this page is the Infineon TZ810N22KOF datasheet; TZ810N22KOFB01 is a variant of this type.

Technical document (PDF)  |  Request a quote for TZ810N22KOFB01 (reply within 24 hours)
