TZ810N22KOF Infineon - Thyristor / Diode Module

Category: Thyristor & SCR Modules

Specifications: 2200V, 810A

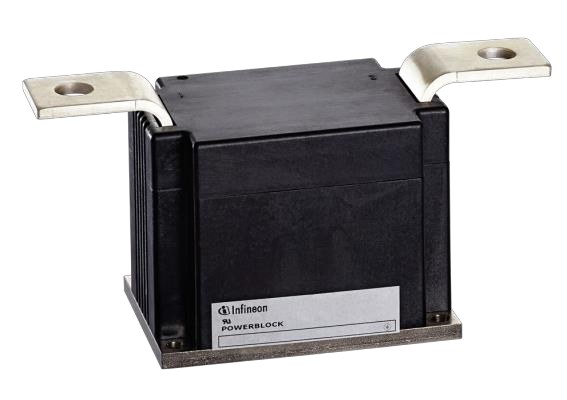

TZ810N22KOF Infineon Thyristor / Diode Module

Representative image – actual product may differ

We beat competitor's price with faster delivery.

For 6 pieces or more, submit your inquiry here, email to sales@uscomponent.com or call 1-281-968-0718

TZ810N22KOF Description

TZ810N22KOF is a 2200 V / 810 A single thyristor thyristor module from Infineon Technologies. Typical applications: §=6Rectifier for Drives Applications, Battery chargers, Soft starter, Crowbar applications, Power controllers.

USComponent supplies TZ810N22KOF and other Infineon power modules. Request a quote for price and lead time - we reply within 24 hours.

Target Applications

Infineon TZ810N22KOF is used for §=6Rectifier for Drives Applications, Battery chargers, Soft starter, Crowbar applications, Power controllers.

Key Specifications

TZ810N22KOF is a 2200 V / 810 A single thyristor thyristor module from Infineon Technologies (70 mm base plate module). Source: Infineon datasheet and product table.

ParameterValue
ManufacturerInfineon Technologies
Product typeThyristor module
ConfigurationSingle thyristor
Repetitive peak voltage (VDRM / VRRM)2200 V
Average on-state current (ITAVM)810 A
Package70 mm base plate module
DatasheetAvailable on this page (PDF)

Technical document (PDF)  |  Request a quote for TZ810N22KOF (reply within 24 hours)
