TZ740N22K Infineon - Thyristor / Diode Module

TZ740N22K Description

Infineon Technologies makes the TZ740N22K, a thyristor module. Typical applications include soft starters, AC power controllers, controlled rectifiers, DC motor drives and heating control. Many of these parts are still in service in machines built years ago, and a direct replacement is often the fastest way to get one running again.

USComponent (Young & New Century LLC) supplies power modules, thyristors, diodes and other industrial components, including legacy parts. Contact us for a quote on the TZ740N22K, and please confirm ratings against the datasheet before ordering.

Summary of Features

Target Applications

Infineon TZ740N22K is used for AC/DC power conversion and control: controlled and uncontrolled rectifiers, DC motor drives, soft starters, battery chargers, welding equipment, heater and temperature control, and AC power controllers.

Key Specifications

TZ740N22K is a 2,200 V, 740 A thyristor module (single). Source: manufacturer datasheet.

Parameter	Value
Product type	Thyristor module (single)
Repetitive peak voltage (VDRM / VRRM)	2,200 V
Rated on-state current	740 A

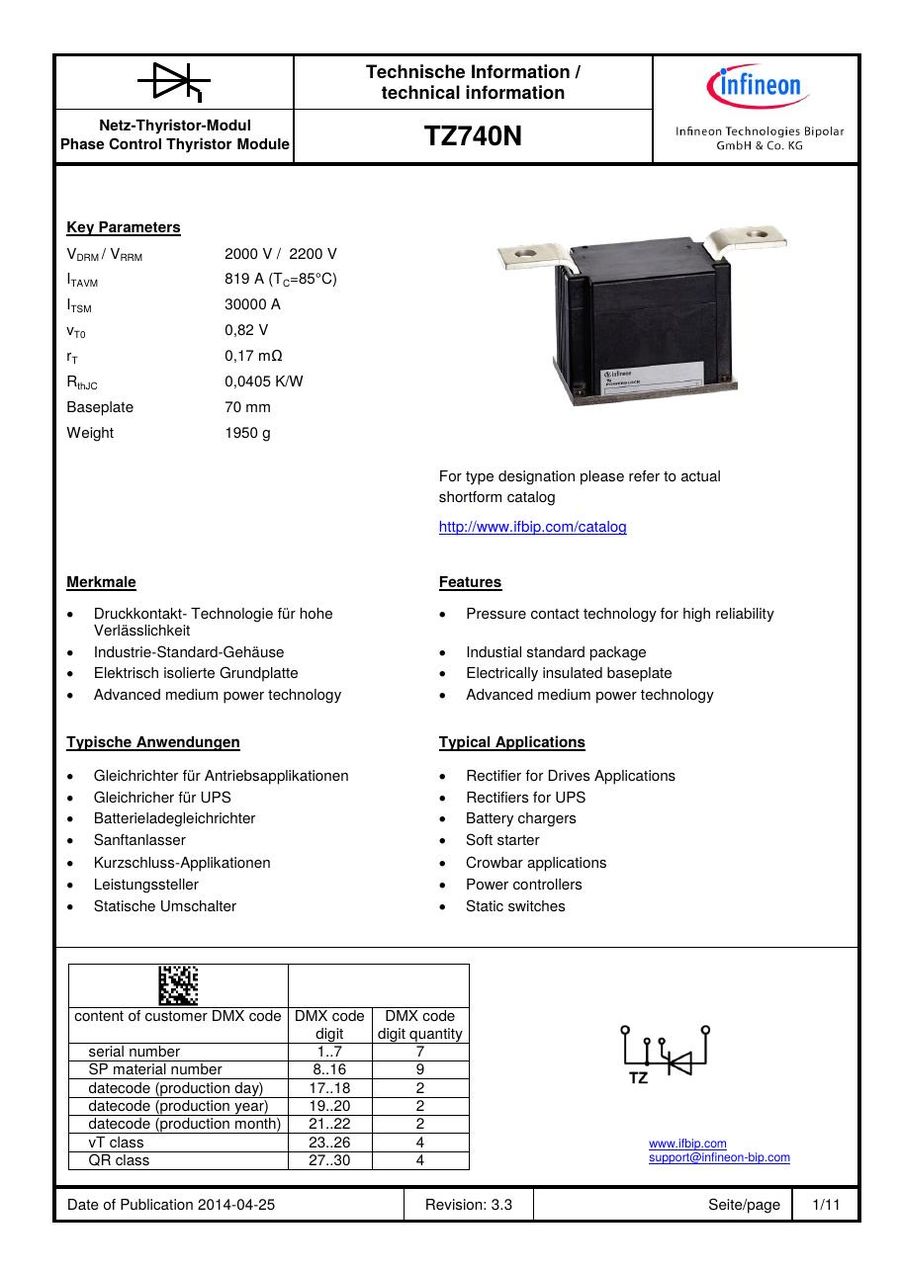

Datasheet	Available on this page (PDF)

Technical document (PDF)  |  Request a quote for TZ740N22K (reply within 24 hours)
